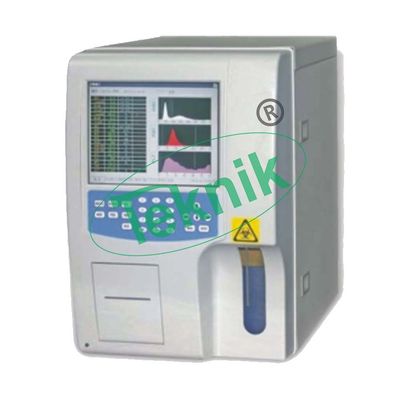

Microteknic - Model EM-309 - Auto Hematology Analyzer

Principle

Electrical resistance for counting and SFT method for HGB.

Performance

Parameters: Precision CV%
WBC: (10/L) 2.0%
RBC: 1.5%
PLT: 4.0%
MCV(fl): 0.5%
HGB (g/L): 1.5%

Display

Large Color LCD, displays all parameters result with histogram of WBC, RBC and PLT Resolution 640×480.

Menu

Count, Sample Models, Review, Quality Control,System setting, Reference value, System Service, Calibration copyright, Shutdown.

Alert

25 sets of alert message.

Input/Output

USB(keyboard, mouse, flash disk), RS 232, parallel.

Print

Operating Environment:
Temperature: 18-30°C.
Humidity: 10%-90%

Power Requirement

AC110-240V, 60/50 Hz. 2A
Graphic thermal printer with various printing format optional external printer.

Sample Volume

Prediluted blood: 20ml
Whole blood: 9-20ml (option)
Throughput: ≤ 2 minutes per sample
Memory: 35000 results
