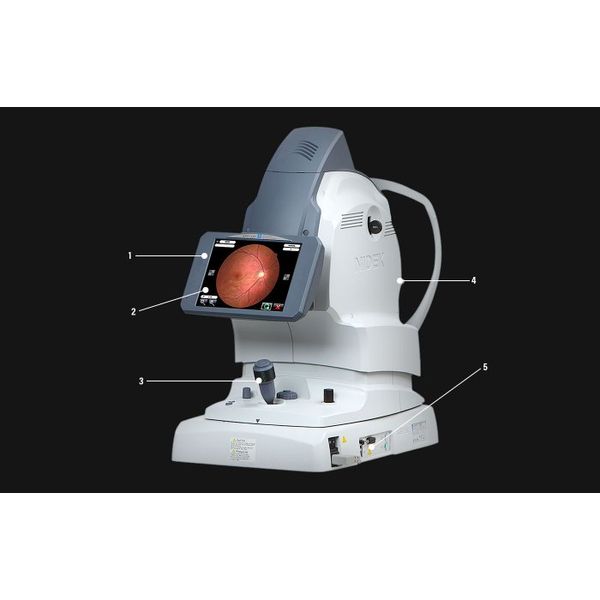

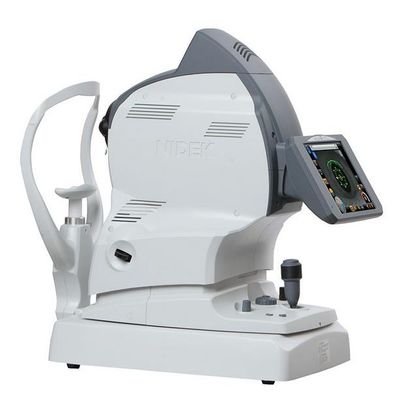

Marco - Model AFC-330 - Automated Fundus Camera

The AFC-330’s automated functions breaks new ground in fundus imaging technology with focus on capturing the perfect picture every time, regardless of operator experience or skill level.

3D AutoAlign in X-Y-Z

3 dimensional automatic alignment through technologies such as auto tracking, where patient movements are detected and followed automatically, as well as auto focus, and auto capture. Being equipped with this level of sophistication, the AFC-330 is able to align and automatically switch from anterior to posterior focusing.

Advanced Automation

The AFC-330 delivers unsurpassed ease of use with advanced features that enhance the management of retinal disease, such as glaucoma and diabetic retinopathy. Some of these advanced features include auto-stereo pairing, auto-panoramic imaging, external photography, and single 45° advanced or standard fixation.

Modern Design

The large color touchscreen on the AFC-330 places all functions at the operator’s fingertips with intuitive menus and icons. Exam type, patient selection, database edits, and image review are all possible on the AFC-330’s screen. Features a large 8.4” tilting, color touchscreen, small footprint with stand-alone operation, and one of the fastest automatic cameras on the market.

All In One

The integrated high-resolution imaging sensor and internal PC eliminates complicated cabling, allowing the AFC-330 to communicate via LAN without the need for an external PC in the screening area, thereby maximizing office space.

Patient Comfort

The AFC-330 improves efficiency in time, space, and patient comfort. The lower flash intensity and sound-dampened mechanical movements, along with automatic blink and pupil measurement, make for the perfect picture every time with fewer retakes and happier patients. It is arguably one of the fastest automatic retinal cameras available with capture time often less than five seconds.

Data Management Flexibility

The AFC-330 provides multiple data management solutions for any practice. Its space-saving design can efficiently export information across a network without the need of an additional PC in the screening area. A stand-alone device with USB 2.0 storage media and printer, LAN connection with JPEG and XML output, and integrates with NAVIS-EX software

Technical Details

• Type: Non-mydriatic Automated Fundus Camera
• Angle of View: 45º (33º in small-pupil photography mode)
• Working Distance: 45.7mm (from objective lens to cornea)
• Minimum Pupil Diameter: 4.0mm (3.3mm in small-pupil photography mode)
• Dioptric Compensation: -33 to +35 D total for patient’s eyes -33 to -7 D with minus dioptric lens -12 to +15 D with no dioptric lens +11 to +35 D with plus dioptric lens
• Focusing Method: Infrared focus split alignment Adjustable range: -12 to +15 D
• Light Source: For observation: Halogen lamp 12V 50W
• For Photography: Xenon flash lamp 300W
• Flash Intensity: 17 levels from F1 (F4.0 +0.8 EV) to F17 (F16 +0.8 EV) 0.5 EV increments
• Internal Fixation Target: LED (maximum 9 points)
• External Fixation Target: Free-arm (optional)
• Horizontal Movement: 40mm (back and forth) 85mm (left and right)
• Vertical Movement: 32mm
• Chinrest Movement: 62mm (up and down, motorized)
• AutoTrack: X-Y-Z direction
• Auto Capture: Automatic image capture
• Camera: Built-in 12 megapixel CCD camera
• Display: Tiltable 8.4-inch color LCD touchscreen
• Interface: LAN, USB 2.0

Dimensions

• Measurements: 316mm (W) x 518mm (D) x 579mm (H) 12.4”
• (W) x 20.4” (D) x 22.8” (H)
• Mass (Approximate): 29 kg

Power

• Power Supply: AC 100-240 V ±10%, 50 / 60 Hz
• Power Consumption: 150 VA
