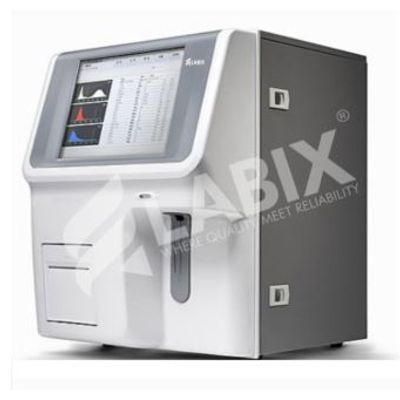

LABIX - Model LBX-721 - Automated Hematology Analyzer
The LBX-721 Automated Hematology Analyzer is an advanced diagnostic tool designed to streamline the analysis of blood samples. Specifically targeting complete blood count (CBC) metrics, it efficiently measures parameters such as red blood cells, white blood cells, platelets, hemoglobin, and hematocrit. This analyzer is an indispensable asset in medical settings including hospitals, clinics, and pathology laboratories due to its capability for rapid and precise evaluation. By automating these processes, it helps reduce manual workload and the possibility of human error, ensuring accuracy in diagnostics. Its application is crucial in a variety of clinical assessments and can provide vital data for diagnosing and monitoring numerous health conditions. The LBX-721 enhances laboratory productivity by delivering reliable results that inform medical decisions.
Automated Hematology Analyzers are advanced diagnostic devices designed to analyze blood samples both accurately and rapidly. The analyzers are used extensively in hospitals, clinics, and pathology laboratories, they automate the complete blood count (CBC) analysis of red blood cell, white blood cell, platelets, hemoglobin, and hematocrit.
- Parameter : WBC, Neu#, Lym#, Mid#, New%, Lym%, Mid%, RBC,HGB,HCT, MCV, MCHC, RDW-SD, RDW-CV,
- PLT,MPV, PDW, PCT, P-LCR
- Histograms : WBC, RBC, PLT Histogram
- Languages : English, Spanish, Italian , Portuguese, etc.
- Calibration : Manual and Auto-calibration
- Quality Control : 3 level QC, LJ Graph
- Sample Volume : Venous mode : 10il venous blood Capillary mode:10il
- capillary blood Prediluted mode : 20il capillary blood
- Display : 8-inch color touch screen Liquid Crystal Display (LCD)
- Resolution : 800-600
- Storage : 100,000 Sample results with histograms
- Reagent : Lyse (500ml) and Diluent(20L)
- Printout : Thermal printer, support external printer
- Temperature : 18-35°C
- Power : AC 100-240V, 50/60 ± 1Hz
- Dimension : 410 x 435 x 472mm (LxBxH)
- Throughput: 35T/H 8-Inch touch screen 20 parameters
- 3 histograms sample volume 10 µL
- Reagents Only
- Counting Modes
- 100,000 Sample results
- Support LIS and external printer
- CE Marked
- PARAMETERS PRECISION (CV)
- WBC=2.0% (7.0-15.0×109) L
- RBC = 1.9% (3.5-6.0×1012) L
- HGB = 1.9% (110.0-180.0g) L
- MCV = 0.4% (80.0-110.0) FL
- LT = 4% * (100 – 500 * 109) / L
- Performance
- WBC=(0-99.9 X 109)/L
- RBC = (0-9.99 X 1012)/L
- HGB = (0-300.0)g/L
- PLT = (0-999×109)/L
