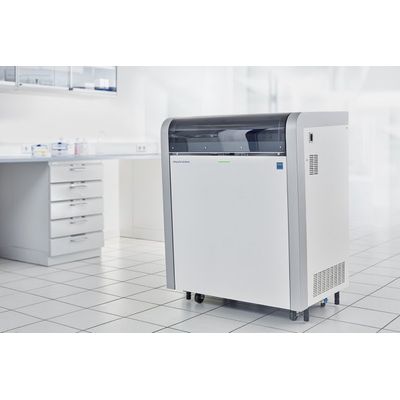

DiaSys Respons -Model 940 -Automated Random Access Clinical Chemistry Analyzer

• System type : Automated random access clinical chemistry analyzer
• Throughput : 400 tests/hour photometric; 640 tests/hour photometric + ISE
• Reagent on board capacity : Max. 72 reagent positions (R1+R2), up to 36 methods in barcoded respons® mono or twin containers for adapter free one grip loading
• Analytical methods : 1-point, 2-point Rate-A, Rate-B, direct potentiometric ISE, Cubic spline, 4P logitlog, 5P logitlog
• Calibration : Linear (one point, multi point), exponential, polynomial, factor
• Measuring principle : Colorimetry (rate/end point), Immunoturbidimetry
• Ion measurement : Direct potentiometry: Na, K, Cl, Li
• Sample disk : 80 positions for sample, blanks, standards, calibrators, controls and STAT samples
• Sample pipetting : 2-70 µL (adjustable in 0.1 µL steps). Clot detection for sample probe
• Serum indices : Detection of lipemic, icteric and hemolytic samples
• STAT analytics : Several flexible positions
• Sample tubes & cups : Primary tubes of 5, 7 & 10 mL and sample cups
• Barcode identification : For samples and reagents
• Reagent pipetting : Reagent 1: 50-300 µL in 1 µL steps. 10-300 µL in 1 µL steps
• Mixing systems : 2 independent stirrers with 3 mixing speeds
• Reading volume : 180 µL
• Quality control : Levy Jennings graphs, Westgard rules and Twin Plot Management for 4 level of controls
• Utility programs : Carry over evasion, cuvette skipping, different washing programs
• Photometry : 12 wavelengts: 340, 376, 415, 450, 480, 505, 546, 570, 600, 660, 700 and 750 nm. Wavelenghts separation by diffraction grating, twin-test functionality
• Photometric linearity and resolution : Linearity: 0-3.0 OD. Resolution: 0.0001 OD
• Light source : Halogen lamp 12 V/20 Watts
• LIS connectivity : Yes
• Water consumption : <13 liters per hour
• System interface : Analyzer PC: USB 2.0 bi-directional for Pentium IV or higher, PC interface
• Power source/Power consumption : AC 110V +/-10 %, 60 +/- 1 Hz or 220V +/- 10%, 50 Hz +/- 1Hz - switchable 800 VA
• Dimensions : 91 cm (W) x 78 cm (D) x 116 cm (H)
• Weight : Approximately 200 kg

Customer-oriented

Together with modern software features, pre-programmed applications and carry over evasion lists, respons®940 analyzer delivers high quality results for a broad parameter portfolio.

Due to durable quartz cuvettes, low reaction volume and maintenance free photometer, this analyzer offers the economic use and reliability required in small to medium sized labs.
