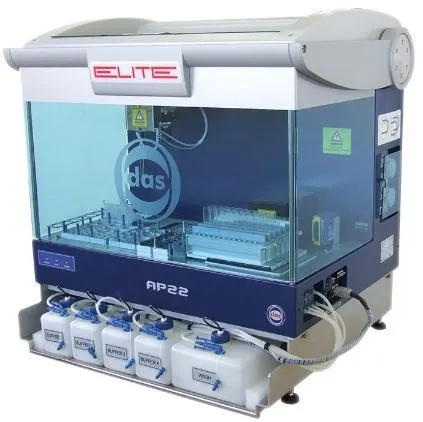

Elite -Model AP 22 -Automated System for ELISA
FromDAS Srl
AP 22 ELITE is a full automated system for ELISA method. The instrument is able to run 2 ELISA micro-plates with 8 tests on line, from sample pre-dilution, sample and reagent dispensation, incubation and washing cycles as well to the final ELISA reading and data processing.
Most popular related searches
- Barcode reader: built-in sliding sample barcode reader
- Sample tray: 91 sample tubes Ø13mm or 70 sample tubes Ø16 mm; both kinds can be used at the same time
- Elisa dilution cups: 110 position
- Dilution cuvettes: 22 cup blocks for easy loading
- Removable trays: Modular racks to hold calibrators, controls and reagent for 8 tests on line
- External liquid tanks: Wash, Waste and 2 Wash buffers tanks equipped with level sensors
- Microtiter plates: 2 standard plates (12 x 8 well format), incubatedat room temperature or from 36° to 45°C
- Shaker: Microtiter plate shaking capability (optional)
- Liquid handling: 1 probe for dilution and dispense
- Plate washing: two 8 nozzle manifolds one to dispense and the other one to aspirate; residual volume
- Wash buffers: 2 buffers for microplate washing in external tanks with level sensors
- Plate washing inaccuracy: CV < 5 % with 300 µl
- Reading system: 8 independent photo-metric channels with mono and bichromatic reading capability
- Interferential filters: 2 precision filters (450 and 650 nm); 2 more on request (4 filters max, 400-700nm)
- Reading Capability: Reading from0.000 a 3.000 OD; inaccuracy ± 1% from 0.000 to 1.500 OD; ± 2% from 1.500 to 3.000 OD
- Syringe: 1000µl volume, 1µl step resolution
- Dispensation: From 8 µl to 1000 µl by steps of 1 µl, inaccuracy ± 1% at 100 µl
- Sample dispense time: 11s with 2ml of washing solution
- Connection: LIS interface capability,work list import from Host Computer; a single PC can run more instruments in parallel.
- Operative systems: Windows 7 or Windows 10
- PC specifications
- Requisiti minimi: 250 MB spazio libero su Hard Disk; lettore CD-Rom; 2GB RAM; Intel Pentium Dual Core o equivalente, VGA 1024 x 768 16 milioni di color; 2 porte USB 2.0 libere; stampante.
- Requisiti suggeriti: 4GB RAM; Intel Core 2 Duo E6500 series o equivalente
- Power requirements: 230 / 115 VAC, 50-60 Hz, 350 W
- Measurements: cm 62 x 83 x 72h
- Weight: 85 Kg
