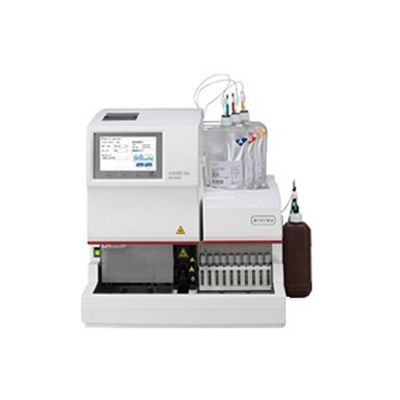

Arkray - Model ADAMS A1c HA-8190V - Automatic Glycohemoglobin Analyzer

HA-8190V detects and separates variant hemoglobin automatically, and this function will be the new standard for hemoglobin analyzer.

HA-8190V detects and separates variant hemoglobin automatically, and this function will be the new standard for hemoglobin analyzer.

Measurement Speed

• Only 24 sec/test in Fast mode and 58 sec/test in Variant mode.

User friendly

• Sample tubes rotate automatically for barcode reading, eliminating work flow to align the tubes.
• By using different racks for different purposes, samples can be identified correctly without any special operation.
• Improved operability with touch screen.

Better HbA1c results

• Detect and separate variant hemoglobin automatically as standard function.

• Sample Type : Whole blood or hemolysis sample
• Measurement items : HbA1c (stable HbA1c), HbF (In Variant mode, HbS and HbC can be separated and HbE and HbD can be detected)
• Measurement principle : HPLC method (Reversed-phase cation exchange chromatography)
• Measurement wavelengths : 420nm/500nm (Dual-wavelength colorimetry)
• Resolution : 0.1% Ratio. 1mmol/mol
• Sample consumption : Approx. 8μL (whole blood)
• Processing speed : Fast mode : 24 seconds / sample
• Variant mode : 58 seconds / sample
• Required sample volume : Sample tube : 10mm or above from the bottom of sample tube
• Sample cup : 400μL or above
• Sample container : Sample tube : (φ13 or 15) x (75 - 100mm)
• Sample cup : 500μL
• Displayed range : HbA1c : 3 to 20 %, 9 to 195 mmol/mol
• HbF : 0.0 to 99.9%
• Authenticated-compatibility range : HbA1c : 4 to 16 %, 20 to 151 mmol/mol
• Number of samples loaded : One-way transportation : Maximum of 50 samples
• Loop transportation : Maximum of 100 samples
• *Maximum of 200 samples can be loaded using the optional"Side Sampler".
• Display : Color LCD (with touch screen)
• Built-in printer : Thermal printer, 58 mm thermal paper
• Memory capacity : 900 test results (including calibration results)
• External output : Serial 1 port (Can be optionally used as an Ethernet port)
• Measurement conditions : Temperature : 10 - 30 ?
• Humidity : 20 - 80%RH (No condensation)
• Power consumption : 300VA
• Dimensions : 530(W)x530(D)x530(H)mm
• * Not including the projection portions, eluent packs and hemolysis washing solution bottle
• Weight : Analyzer : Approx. 41kg
• Sampler unit : Approx. 4kg
