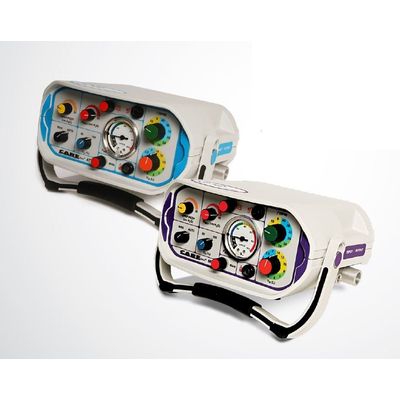

CAREvent - Model ATV+ and MRI - Automatic Transport Ventilators
The CAREvent® Automatic Transport Ventilators are lightweight, portable, durable and simple to use, control module style, automatic time/volume cycled ventilators. They are completely pneumatic (no batteries required) and deliver breath by breath consistency in delivered tidal volume, frequency, inspiratory/expiratory times and flow rates. This consistency is not achievable with a bag-valve-mask resuscitator and prevents gastric inflation and high intrathoracic pressure.
Designed primarily for the demands of emergency rescue, resuscitation and critical care patient transports, the CAREvent® ventilators provide functionality normally only found in high end electronic ventilators.
Four models are available to meet the various functionality and budgetary needs. Features available include:
- “Demand Breathing” for the spontaneously breathing patient
- Manual Override Ventilation to supplement automatic ventilations if required and activate delayed cycling when a 30:2 CPR protocol is being performed.
- Flexibility in breath volume and frequency delivery to ventilate patients from 5 kg. to large adults (note ALS+ suitable for patients from 15 kg.)
- CPAP to provide non-invasive treatment for patients with CHF, COPD and PE. This provides one space saving device for oxygen therapy, CPAP treatment, resuscitation and ventilation (ALS+, ATV+ and MRI).
- Auto Cycling Shut-Off and Re-Start to synchronized ventilation for patients moving in and out of respiratory arrest. Note: In the child settings the inspired flow rate of the patient may be insufficient to cause the Automatic Circuit Shut off to function.
- Airway Pressure Gauge to provide visual monitoring of the patient and ventilator settings.
- An Audible and Visual Low Gas Supply Warning.
- Audible and Visual Indicator for a circuit disconnect or when delivered tidal volumes are insufficient (ATV+ and MRI)
MINUTE VOLUME: 2 - 14 litres
BREATHS PER MINUTE: 8 - 40
I:E RATIO: 1:2
AUTOMATIC FLOW RATE: 6 - 42 L/min
MANUAL FLOW RATE: As per selected setting
DEMAND FLOWRATE: >100 L/min
DEMAND TRIGGERING PRESSURE: -2 cm H20
MINIMUM INPUT PRESSURE: 45 PSI
MAXIMUM INPUT PRESSURE: 87 PSI
MAX . AIRWAY PRESSURE: 60 cm H2O
OXYGEN CONCENTRATION: 60 or 100%
ADJUSTABLE AIRWAY PRESSURE RANGE: 20 - 60 cm H2O
OPERATING TEMPERATURE: -18°C to +50°C
0°F to +122°F
STORAGE TEMPERATURE: -40°C to +60°C
-40°F to + 140°F
PATIENT CONNECTION: 9/16" DISS
PATIENT VALVE DEADSPACE: 8 ml
GAS SUPPLY STATUS INDICATOR: VISUAL
CIRCUIT DISCONNECT ALARM: PULSED AUDIBLE, AND VISUAL. ALARM SILENCE CONTROL - 15 SECONDS
LOW INPUT PRESSURE ALARM: PULSED VISUAL and AUDIBLE
MINUTE VOLUME: 2 - 14 litres
BREATHS PER MINUTE: 8 - 40
I:E RATIO: 1:2
AUTOMATIC FLOW RATE: 6 - 42 L/min
MANUAL FLOW RATE: As per selected setting
DEMAND FLOWRATE: < 100 L/min
DEMAND TRIGGERING PRESSURE: -2 cm H20
MINIMUM INPUT PRESSURE: 45 PSI
MAXIMUM INPUT PRESSURE: 87 PSI
MAX . AIRWAY PRESSURE: 60 cm H2O
OXYGEN CONCENTRATION: 60 or 100%
ADJUSTABLE AIRWAY PRESSURE RANGE: 20 - 60 cm H2O
OPERATING TEMPERATURE: -18°C to +50°C
0°F to +122°F
STORAGE TEMPERATURE: -40°C to +60°C
-40°F to + 140°F
MRI CONDITIONAL Up to 3.0 Tesla
PATIENT CONNECTION: 9/16" DISS
PATIENT VALVE DEADSPACE: 8 ml
GAS SUPPLY STATUS INDICATOR: VISUAL
CIRCUIT DISCONNECT ALARM: PULSED AUDIBLE, AND VISUAL.
ALARM SILENCE CONTROL - 15 SECONDS
LOW INPUT PRESSURE ALARM: PULSED VISUAL and AUDIBLE
