Medezine - Model 5000 - Autopsy Saw

Single press on/off Operation
Easy to use one button press on/off button. Efficient 13200 Oscillation per minute cycle

Unique Ergonomic Design
Easy grip design reduced user fatigue

Innovative Vacuum Unit
Light, compact and portable, with efficient 3 stage filtration, filter bag/Cloth filter/and Hepa filter (to 0.6 Microns). Drip proof to IP44 standard. 4 large Chassis wheels (with brakes)

Waterproof full immersion cleaning
Hand-piece hermitically sealed, watertight to IP67 rating, easy to clean and decontaminate

Low Voltage Safety
Operates on safe 40 Volts

Improved Power supply
Reduced overloading via intelligent current limiter. Increased power to hand-piece and updated safety features, easy top mounted power lead, and protected to IP65 wet environment rating. Available in 110V and 240V versions

Light weight and balanced
Hand piece professionally balanced and only weighs 1300g with flexible silicon hood for improved visibility

Unique Blade security
Comprehensive chrome plated blade range with simple wrench and blade clamp-screw system. Easy blade rotation and fixation

Power Supply
Transformer manufactured to: IEC – EN60742
Output Saw 40 VDC
Enclosure manufactured to: IEC529, DIN40050
Protected to IP65
Protection Electronic Current Limiting, Device Double Pole Fused
Constructed to IEC60601-1
Weight 1.7kg
Input voltage 230Vac or 110 Vac
Cable 4.0m fitted

Vacuum Unit
Motor Rated 750 Watt
Container Capacity 7.0 litre
Air Volume Open (max) 90 litres/sec
Max Vac Closed 1650mm WG
Filtration 99.997% at 0.6 micron
Dimensions Height 940mm including handle
Width 530mm Chassis Base
Weight 11.5kg
Noise level 66Db at 1 metre

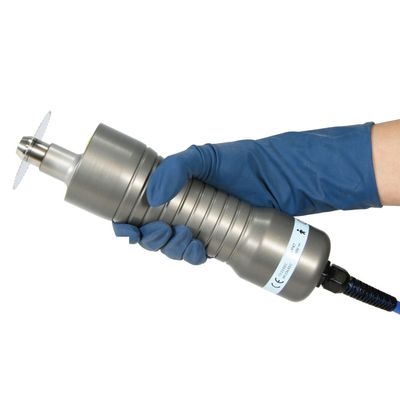

Hand Piece
Motor DC Permanent magnet
Speed no load 13200 cycles per min
Current no load 40Vdc 0.75amp
Typical load 1.5 amps
Construction Anodised Aluminium body with 5 bearing sealed mechanism
Protected to IP67
Noise Level 37 dB (A) no blade
Vibration Value 4.12 m/s2
Weight 1.3kg

Technical Requirements
IEC/EN 60601-1
EMC 2004/108/EC
