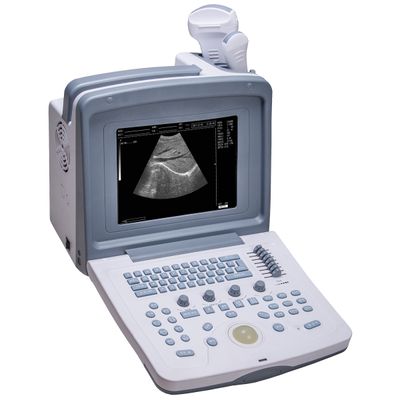

Welld - Model WED-9618 - B-Ultrasound Diagnostic Apparatus
WED-9618 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization(DRA), real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image. The external Video printer and external monitor display can be realized with the PAL-D Video output port. All the ultrasound images can download to PC with high speed USB 2.0 port. Various image processing software packages are available.
Most popular related searches
obstetrician gynecology
abdominal obstetrician
ultrasound diagnostic
cardiac probe
abdominal gynecology
obstetric
cardiovascular
biopsy
cardiology
gynecology
- Scanning Model: Electronic Linear Array, electronic convex array
- Cine-loop: ≥400 frames
- Image Storage: ≥32 frames
- Display Depth: ≥250mm
- Scanning Angle: Visible and adjustable
- Display Mode: B?B+B?B+M?B+M/M?M?4B
- Operation Interface: Chinese/English switchable
- TGC Adjustment: Near Field, Far Field, Total Gain Independent Adjustment
- Focus Control: Focus Number, Focus Distance, Focus Position Adjustment
- Image Processing: Image Black/White, Gamma Correction, Edge Enhancement and Histogram
- Real-time Depth: 16 levels are adjustable
- Zoom: ≥2 times
- Abdominal Convex Probe
- Endo-rectal Probe
- High-frequency Linear Probe
- Cardiac Micro-convex Probe
- Transvaginal Probe
- Application Software (Disk)
- High-speed USB Connection Cable
- Video Printer
- Trolley Cart
- Probe Holder
- Biopsy Bracket
- Power Cable
- Gel
For clinical ultrasonography of abdomen, obstetrics, gynecology, organelle, small organ, superficial organs, urology, cavity, cardiology and cardiovascular.
