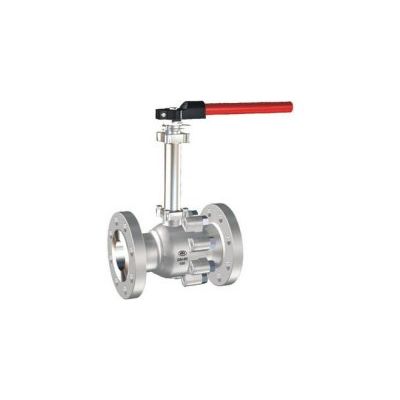

Model BDK -Ball Valve for Cryogenic Applications
A regular or full bore ball valve. Suitable for isolation and cryogenic applications in the power, oil and gas and petrochemical industries.
Most popular related searches
Application
- Isolation
Features / Benefits
- Regular bore, full bore
- Secondary Stem Seal - `O` ring offered on request
- Cavity-free design - available on request
- Vent and Drain - Needle Valve provided
- Fire-safe test requirements of API 607 and API 6FA
Ansi cLASS RATING
- Class 150, 300
Design standard
- BS EN ISO 17292 (BS 5351), API 6D, BS 6364
Sizes
- 15mm (1/2") to 300mm (12")
Materials
- Body: WCB, LCB, CF8, CF8M, CD4MCu, CN7M, H-B, H-C, etc
- Seats: PTFE, reinforced PTFE, even metallic
Ends
- Flanged
- Weld
