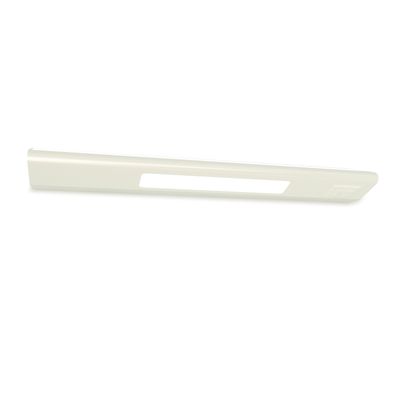

Model Auxilia L -Bedhead Unit

AUXILIA L bedhead unit is made with a single extruded aluminum channel for housing light sources and sockets for electrical distribution and communication. The upper surface is inclined in order to orientate the luminous flux and avoid the dust settling.

Most popular related searches

ISO 13485

examination light

CLASSIFICATION ACCORDING TO THE 93/42/CEE DIRECTIVE

I class (no gas) - IIa/IIb (with gas)
Non-stop operation
No sections are applie
Suitable for the installation in group 0, 1 and 2 medical premises
Not suitable for the installation in explosion risk environments (locations with gases and flammable vapours)
Not suitable for the installation in environments with an oxygen amount superior to the 25% with an environmental pressure until the 110kPa in usual circumstances
Not suitable for the categories AP and APG provisions

REFERENCE DIRECTIVES AND REGULATIONS
93/42/CEE; UNI EN ISO 11197; CEI EN 60601-1; CEI EN 60598; CEI EN 55015; CEI EN 61547; UNI CEI EN ISO 14971; UNI CEI EN ISO 13485

DIFFUSER: Opal methacrylate diffuser for reading/examination lighting - Opal polycarbonate diffuser for general lighting
PROTECTION DEGREE IP: IP20 general - IP40 lighting circuit - IP21 electrical sockets
STANDARD COLOUR: Opaque RAL9010
SURFACE TREATMENT ON REQUEST: Anodization, antimicrobial coating, decorative finishing. Check the possible finishings
LIGHTING FEATURES
Details relating to one bed behead unit 1500 mm long
GENERAL LIGHT: 48W - 4728lm - 4000K
READING LIGHT: 12W - 1104lm - 4000K
EXAMINATION LIGHT: 24W - 2208lm - 4000K
NIGHT LIGHT: 3W - 182lm - 4000K
AUXILIA devices can be custom-made according to technical exigencies. The maximum lenght (reffered to a single-block version) is 3700 mm.
For specific needs, please contact our Sales Department.
