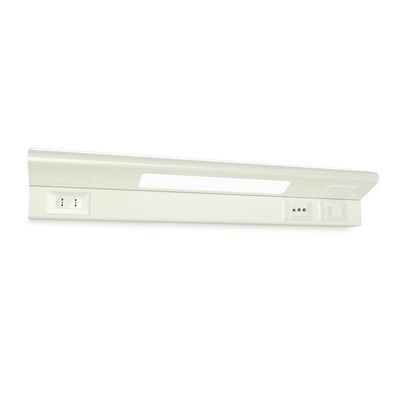

Model Auxilia Ld - Bedhead Unit

DIFFUSER: Opal methacrylate diffuser for reading/examination lighting - Opal polycarbonate diffuser for general lighting
PROTECTION DEGREE IP: IP20 general - IP40 lighting circuit - IP21 electrical sockets
STANDARD COLOUR: Opaque RAL9010
SURFACE TREATMENT ON REQUEST: Anodization, antimicrobial coating, decorative finishing. Check the possible finishings
ELECTRICAL EQUIPMENT: White UNEL 2x10 / 16A + T current socket, 3-module decorative plate, 3-button keypad and data socket.
LIGHTING FEATURES
Details relating to one bed behead unit 1500 mm long
GENERAL LIGHT: 48W - 4728lm - 4000K
READING LIGHT: 12W - 1104lm - 4000K
EXAMINATION LIGHT: 24W - 2208lm - 4000K
NIGHT LIGHT: 3W - 182lm - 4000K
AUXILIA devices can be custom-made according to technical exigencies. The maximum lenght (reffered to a single-block version) is 3700 mm.
For specific needs, please contact our Sales Department.

CLASSIFICATION ACCORDING TO THE 93/42/CEE DIRECTIVE

• I class (no gas) IIa/IIb (with gas)
• Non-stop operation
• No sections are applie
• Suitable for the installation in group 0, 1 and 2 medical premises
• Not suitable for the installation in explosion risk environments (locations with gases and flammable vapours)
• Not suitable for the installation in environments with an oxygen amount superior to the 25% with an environmental pressure until the 110kPa in usual circumstances
• Not suitable for the categories AP and APG provisions

REFERENCE DIRECTIVES AND REGULATIONS

93/42/CEE; UNI EN ISO 11197; CEI EN 60601-1; CEI EN 60598; CEI EN 55015; CEI EN 61547; UNI CEI EN ISO 14971; UNI CEI EN ISO 13485
