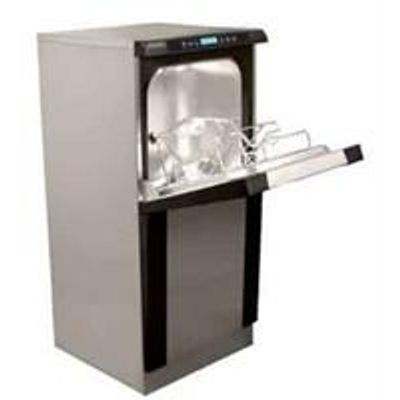

Ken - Model BWD 733 - Bedpan Washer with Large Capacity

FromKen Hygiene Systems A/S

SHARE

Bedpan washer disinfector with large capacity for hospitals, private hospitals, and nursing homes. KEN BWD 733 has been specially developed for hospitals, nursing homes and private clinics where there is a need for washing bedpans, urine bottles, kidney bowls, and others. The machine is also suitable for intensive care wards with a versatile need for washing and disinfecting various utensils. The focus of this machine is on quality, flexibility, and user-friendly advantages.

Most popular related searches

bedpan washer disinfector

intensive care ward

bedpan disinfector

The door acts as slop sink to empty buckets and commodes
5 programs as standard. Option for individual modifications
KEN NetCom – communication via a central or decentral network
Easy-to-read display with program information
Complies with EN IS 15883-3
Unique washing system
Double independent temperature control & drain control

Power connection (standard 3x400V E + Z, 50Hz (or multiple choices)
Connected load/initial fuse 9kW/16A or alternative 6kW / 10A
Water connection 1 Cold tap water: 1 pcs. 3/4″RG, 5-30° C, Hardness 0-3° dH
Water connection 2 Hot soft water: 1 pcs., 3/4″ RG, 30-70°C, hardness 0-3° dH
Water pressure 200-800 kPa
Outlet Ø90mm, wall or floor (to be specified)
Water consumption: rinsing program 1 wash phase, 7 Liters
Urine bottle program 2 wash phases, 14 Liters
Bedpan program – medium 3 wash phases, 21 Liters
Bedpan program – long 5 wash phases, 35 Liters
Wash basin program 3 wash phases, 21 Liters
Detergent pump Standard
Built-in detergent compartment Room for 2 pcs. 5 Liter containers
Pump capacity 298 L/min., 0,75kW
Outer size H x W x D 1280 x 600 x 610mm
Dimension wash chamber H x W x D 520 x 500 x 330mm
Noise level Approx. 45dB(A) (Sound pressure)
Sealing class Standard: IP 21 (not scavenging proof) Extra: IP 44
