Medestime - Model IV.3 - Bilicrystal Devices

• The Bilicrystal.3 devices are phototherapy equipments designed to treat the physiological or acute jaundice in full-term or premature newborn infants.
• It enables to treat all case of hyperbiirubinemia in very short time so avoiding any brain serious damages without needing to systematically resort to exsanguinous-transfusion.
• A control box with its LCD screen ensures optimal patient cutaneous temperature monitoring ans permits to setup the treatment duration following the patrician`s prescription.
• A alarm system as for helps the user if problem occur requiring action by medical staff.
• The device is equipped with mini-tube lights, specially designed by Medestime, emitting a broad wavelength band from 400 nm to 600 nm corresponding to the spectral absorption of the Bilirubin .
• The mini-tubes do not emit energy in the ultraviolet (UV) bands . So no risk of exposing the newborn skin to UV rays
• The devices are designed to be used with an open or close incubator

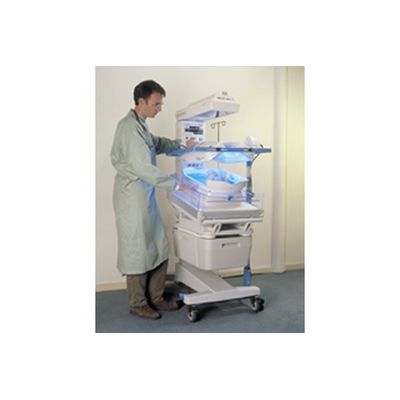

• Movable steel trolley with a large coupole and fitted with 4 casters whose 2 casters with brake.
• Trolley painted in white polyester epoxy powder.
• Coupole adjustable in hight ( in case of overheat)
• Coupole equipped with 6 light mini-tubes referenced PLS 11W / 25000 K / 2G7.
• Command box removable with LCD screen for the surveillance of baby’s temperature measured by the probe (small stainless steel disk dia 10 mm put close to Baby`s ombilic) and for setting up the treatment time ( count down timer)
• Box connexion with a power supply input (220 V – 50/60 Hz) and two outputs 160 W (220 V – 50/60 Hz) to the mini-tubes light (one output to the light box and one to the coupole)
• Plugging with the command box and with the temperature probe.
• Light box removable equipped with 6 mini light tubes referenced PLS11W/25000K/2G7.
• Transparent cradle with 1 hammock frame support and 2 hammocks.
• 1 temperature probe

Modulable version, consisted of 2 complete phototherapy systems that can be used together for an intensive phototherapy treatment.
