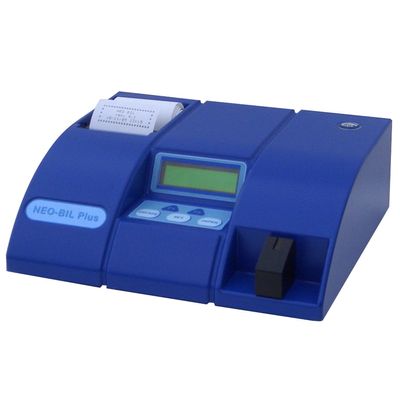

Das -Model NEO-BIL PLUS -Bilirubinometers
NEO-BIL PLUS is an advanced and innovative version of traditional bilirubinometers. It is to analyze the ‘total bilirubin’ through a microcapillary tube in order to follow the new born icterus course. More than 20 years of experience in this specific field and that of physics-chemestry have led us to this achievement. Thanks to the use of the most advanced technology, frequent adjustments and continuous standard resetting are over. A precise sample measurement of both bilirubin and interferentials on the same point of the capillary is carried-out by a special reading system. The reading is carried out even on a small quantity of serum. No reagents are required. NEO BIL Plus is equipped with a built in printer for the results sequential printing.
- Intended use: measurement of total bilirubin
- Sample: centrifuged whole blood
- Serum: minimum volume: 10 µl
- Reading cuvette: haeparinized haematocrit capillary
- Measure unit: mg/dl or µmol/l
- Measurement range: 0/30 mg/dl or 0/510 µmol/l
- Measure system: photometric
- Sample reading: on a single-point of the capillary
- Zero and checkings: completely automated
- Interferentials: automatically compensated
- Reading time: 3s approx. even on highly haemolized samples
- Reading inaccuracy: 3% in the range 5-30 mg/dl or 85-510 umol/l
- Detector: silicon photodiode
- Optical filters: 455 and 575 nm
- Programming: by membrane keypad
- Results: on LCD and printer
- Keypad: 17 buttons
- Display: 2 lines with 16 columns
- Printer: 20 columns with termal paper
- Data storage: last 1000 results
- Interface: USB port
- Other functions: built-in calendar and timer
- Dimensions: 25 x 22 x 9 cm
- Weight: Kg 1,6
- Power requirements: 230/115Vac, 50-60Hz, 25W
COMPLEMENTARY ITEMS
- ACL-LP-0500: lancettes
- ACL-PL-747500: sealing plasticine
- ACL-CP-74931: glass capillaries (75 mm)
- CRT-01-058: thermal paper
