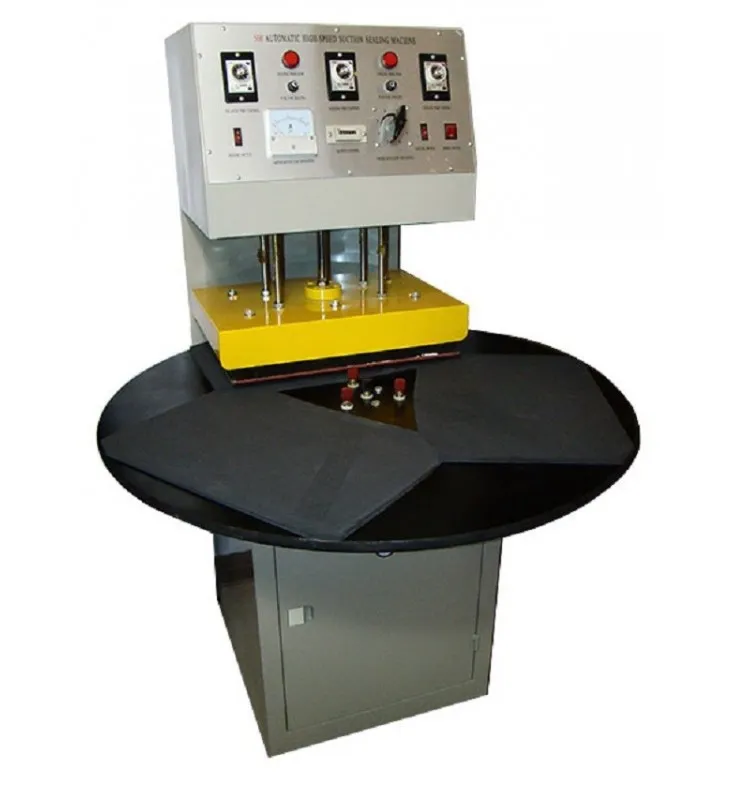

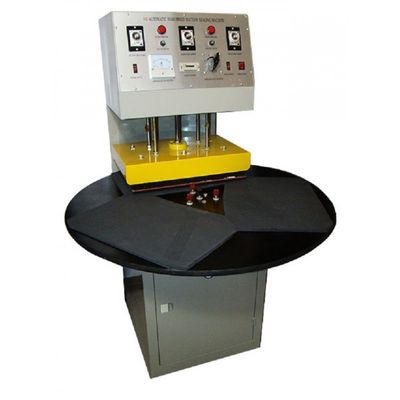

KEGEL -Model XBF-500 -Blister Sealing Packaging Machine
The Blister Sealing Packaging Machine XBF-500 is designed for effectively coupling paper cards with various plastic sheets, including materials such as PVC, PE, and PP. Its user-friendly operation eliminates the need for specialized training. This machine is ideal for packaging products like toys, stationery, and small tools in blister format, ensuring product visibility while offering protection against moisture, dust, and dirt. It relies on a compressor connection and operates at an adjustable temperature range of 0-300°C. Key specifications include a power of 1.5 kW, a power supply of 230 V/50 Hz or 110 V, a working surface measuring 500 x 300 mm, and a compressor capacity of 4 kg/cm². The maximum packing height is 150 mm with a machine weight of 180 kg. The device also features a 1000 mm diameter turning wheel with a maximum load capacity of 110 kg. Dimensions of the unit are 920 x 1070 x 1520 mm, making it a robust solution for industrial packaging needs.
Application:
XBF-500 is applicable to combined paper cards and plastic sheets, such as PVC. PE and PP.
It is easy to operate and does not require operator training.
It can be used to package toys, stationary, small size tools, among other products in a blister shape.
Function:
This packaging method ensures the visibility of the packaged product, while protecting it from moisture, dust and dirt.
The color may vary depending on the delivery.
The device requires a compressor connection.
Technical data:
Power: 1.5 kW
Power supply: 230 V / 50 Hz / 110 V
Working surface: 500 x 300 mm / 20" x 12"
Compressor capacity: 4 kg / cm2
Temperature: 0-300 C
Max packing height: 150 mm / 6"
Diameter of the turning wheel: 1000 mm/ 39"
Maximum load: 110 kg / 242 Ib
Dimensions of the device [length x width x height]: 920 x 1070 x 1520 mm / 36" x 42" x 60"
Weight: 180 kg / 398 Ib
