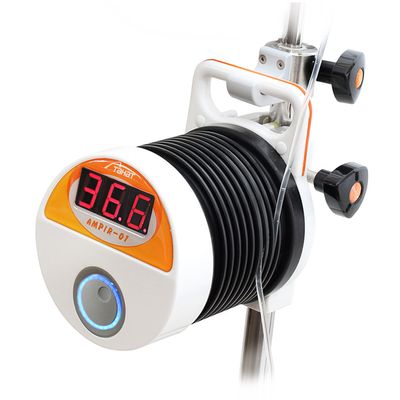

Tahat - Model AMPIR-01A - Blood and Infusion Warmer
Warming of fluids, blood and its substitutes is one of the conditions of proper infusion/transfusion therapy. The use of Ampir-01 in everyday medical practice helps to improve patients` conditions in pre-, intra- and post-operative periods, and reduce complications caused by hypothermia. Can be used in OR, emergency rooms, intensive care units, etc.
- Fast warming of IV fluids, blood and its substitutes
- Single-knob control
- Flow rate - up to 6 000 ml/hour
- Open system. Any long standard IV lines can be used
- Fluid therapy for children and adults
- Blood transfusion
- Transfusion of plasma
- Efficient warming due to a special design and large contact surface of the heat exchanger
- Maintaining set temperature during 24 h
- Secure retention of the IV line in the heat exchanger
- Any standard long IV lines can be used
- Constant monitoring of all device systems
- Quick and easy set-up and mounting on an IV stand or rail
Heat exchanger
- 2-3 winds of the IV line around the heat exchanger are enough for effective warming
- One wind of the IV line around the heat exchanger is 435 mm.
- 2 IV lines can be used simultaneously
- Open system. Long standard IV lines from any manufacturer
Microprocessor control unit
- LED display
- Heating mode indication
- User settings
- Self-diagnostics at the power-up and during operation
- Audible and visual alarms of high and low temperatures and faulty operations
Mounting
- Infusion warmer can be mounted on an IV stand or rail with the diameter of 15-55 mm
- Secure non-slip mounting
Power supply: 110-230 VAC, 50/60 Hz
Temperature setting: 34°? to 41,5°?
Temperature increment: 0.1°?
Warm-up time: < 5 min
Flow rate: up to 6 000 ml/hour
IV line diameter: up to 4.5 mm
Average power consumption: 30 W/h
Maximum power consumption: 390 W
Continuous operation: 24 h
Electric shock protection class: ?/I
Protection rating: IP 23
Weight: approx. 2.8 kg
Demensions: 225×195×170 mm
CE mark: +
