QinFlow - Model Warrior AC - Blood & Fluid Warmer

Superior Performance is Delivered with Unmatched Simplicity!

In environments where every second counts, simplicity is a critical asset. The Warrior AC provides this asset, coupled with unmatched performance.

Key properties of the Warrior AC include:

• Fail-safe assembly: anyone can be trained to operate the device
• Immediate warming: it should not require more than 30 seconds to set up the device and get warm blood/IV fluids
• High performance: from KVO and up to 290 ml/min for 4°C blood/IV fluids
• Superb pressure handling: reinforces consumable to prevent leakages
• Excellent intermittent bolus flow handling: i.e. push-pull resuscitation methods

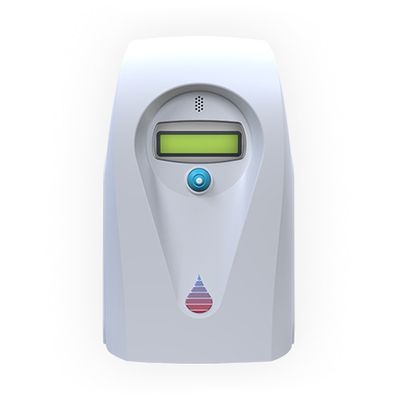

The Warrior AC is a 2-part system composed of an AC Power Supply Module that hosts the controller (or base unit), and per-patient warmer (i.e. disposable unit). Several accessories are offered so as to optimize the offering to the specific operating environments.

Assembly is simple and fail-safe and takes seconds to accomplish. Blood/IV fluids will be warmed almost from the first drop, even at high resuscitation rates. An LCD display indicates to the user the incoming and outgoing blood/IV fluid temperature at all times. The consumable’s fluid path is aluminum-free, thus eliminating toxicity concerns associated with aluminum. Instead, the consumable uses patented medical-grade stainless steel warming technology. The efficiency of our technology ensures immediate warming. The systems measure the blood/IV fluids’ temperature a few hundred times per second and automatically adjust the heating to ensure 38°C (±2°C) output. Thus, the Warrior AC handles intermittent bolus flows (e.g. hand pump, syringe or LifeFlow-like devices which are fairly common in trauma settings), exceptionally well. The technology has been perfected over many thousands of utilizations in hospital settings.

High Performance

• Fastest: Warms near frozen blood/fluid to 38°C (± 2°C) in a few seconds.
• Unmatched Delivery Rate: From KVO and up to 290 ml/min delivery rate at 4°C fluid input temperature and 500 ml/min for room temperature fluids.
• Unique Bolus Flow Handling: Real time sensing and highly efficient warming technology guarantee fast reaction to flow changes.

Designed with the User in Mind

• Simple To Operate: Fail safe assembly. Functions on gravity feed. Flow can be regulated with pressure bag or pump (300 mmHg).
• Same Disposable Unit Fits All Protocols: The same disposable unit can be used for blood and fluid products.
• No Proprietary Tubing: Does not require proprietary blood/IV fluids line.
• Communicative: Built-in LCD for indications and alerts; over and underheating alerts.
•  Power Source Flexibility: Battery operable mode can be added.
• Unique Continuum of Care Proposition: Same consumable can be used across the entire continuum, simplifying patients’ handoff and reducing cost.

Cutting Edge, Mature, and Safe Underlying Technology

• Smart Warming Technology: Microprocessor controller highly efficient smart warming technology.
• Common Heating Element: Medical grade stainless steel coil.
• Extremely Relaxed Heat Transfer Mechanism: Incremental heat transfer over 220cm / 7.2 ft. coil.
• Mature Technology: Field Proven, patent protected technology with thousands of field utilizations.
• Safe Technology: Fail-safe design; aluminum free.
• Defibrillation Proof Type BF Applied Part: Safe to be used jointly with a defibrillator.

Practically Zero Maintenance

• Service Cycles: 5 years between service cycles.
• No Calibration: No need for periodic calibration.

Performance

• Min Delivery Rate: KVO.
• Max delivery Rate: Up to 290 ml/min at 4°C input and 500 ml/min at 20°C input.
• Warm up Time: Within a few seconds.

Standards

• Certified for IEC 60601-1
• Certified for IEC 60601-1-2:2014 (EMC standard 4th edition)

Environmental Specifications

• Storage Conditions: -20°C to 60°C (4°F to 140°F) & 93% RH.
• Operating Conditions: 5°C (41°F) & 15% RH to 40°C (104°F) and 93% RH.
• Ingress Protection (IP): IP22.

• The Warrior and Warrior EXTREME are marketed in the USA, Canada, EMEA, Australia, and New Zealand.
