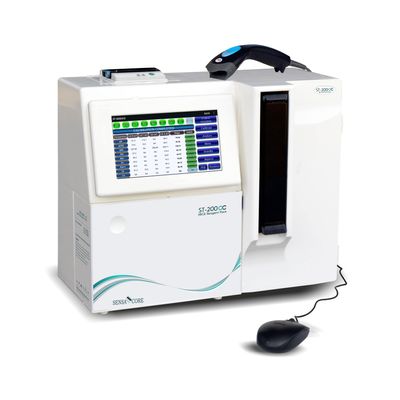

Sensa Core - Model ST-200 CC ABGE - Blood Gas Analyzer
Sensa Core’s ST-200 CC Blood Gas Analyzer is a completely automated, microprocessor controlled ABG Electrolyte system that uses current Direct measurement with ION selective electrode (ISE), Impedance (Hct) and Amperometry (pO2) technology to make ABG andElectrolyte measurements. The ST-200 CC ABG Analyzer measures various combinations of Sodium, Potassium, Ionized Calcium, Lithium, pH, Chloride, pCO2, pO2, Hct, and calculated parameters like Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2 Sat, O2 Ct and SBC in whole blood, serum, plasma, and urine. Sensa Core’s ST-200 CC Blood Gas Analyzer is specifically designed to meet the needs of small to medium-size laboratories by Inventing and developing the latest technology, Sensa Core’s Blood Gas Analyzer improves lab productivity while delivering sample results economically.
Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our Analyzers.Unlike the rest of the ABG analyzers, maintenance of Sensa Core’s Blood Gas Analyzer is limited to the replacement of Reagent Pack, Maintenance-Free Electrodes and Pump Tube which are just plug and play. Depending upon customer requirement ST-200 CC can be upgraded aswell as downgraded to 14 different combinations.
- Sample Volume: 140 µL
- Sample Type: Whole Blood, Serum, Plasma, CSF & Diluted Urine
- Parameters: (ABG: pH, pCO2, pO2, Hct) (ISE: Na, K, iCa, Cl, Li, pH)(Calc: Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2 Sat, O2 Ct, SBC)
- External Integration: Barcode Scanner, Mouse, Keypad (Any 2 at a Time) & LIS Integration (Serial Port)
- Dimensions: 15 Width x 12 Length x 7 Height (Inch)
- Weight: 8 Kg
- Colour: Pearl White
- Pump Mechanism: Long Lasting Comprehensive Lyte
- Sample Storage: 200000+
- Language/s: 94+ Languages
- Auto Sampler: Not Available
- Principle: Direct Measurement with ISE, Impedance (Hct) and Amperometry (pO2)
- Parameter Combinations: 14 Combinations
- Touch Screen: Available (Capacitive Touch)
- Operating System: Android
- External Battery: Available (Optional)
- Input Voltage: 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp.
- Print Result: 2 Inch 24 Column Thermal Printer
- Operating Atmosphere: Atmosphere: Temperature: 10 - 35 Degrees C, <85% Moisture
- Acquirable Results / Hour: 55 Results
- Result Time: 65 Seconds
- Sample Mechanism: Semi-Auto Sampling
- Display: 7 inch
