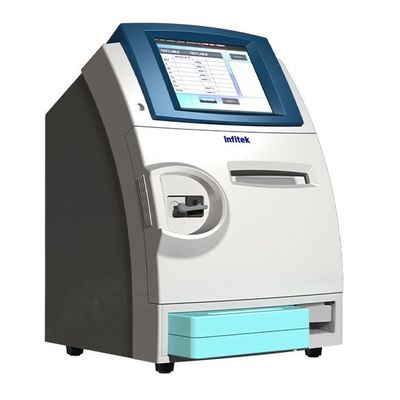

Infitek - Model BGA-95-4 - Blood Gas Analyzer

• Test items：pH，pCO2， pO2 ，Hct
• Sample: whole blood, serum, plasma, dialysate, CSF
• Analysis time:<90s
• Sample volume: 95μL Whole blood;50μL Capillary blood

Intuitive touch screen

• High resolution 10.4’’ touch screen
• User-friendly operation interface
• Parameter area provides analyzer status at a glance
• Online operation and self-diagnostic tutorials

Infrared human-detector

• Flexible and simple calibrants cartridge
• High and low volume testing cartridge can be chose(300,200,150,100,50).
• 30 days available on board
• Stored at room temperature
• All-in-one design without extra consumables
• Cartridge expiration alarm and residue information

Auto QC cartridge

• Optional Auto QC cartridge containing 3 levels QC design
• Auto H/M/L QC once per days, customer can define
• 30 days available on board
• Stored at room temperature
• All-in-one design without extra consumables
• Cartridge expiration alarm and residue information
• Auto-stop analysis sample once failing on QC

Reliable and convenient measurement unit

• Capillary Sample volume only 50μL
• Whole blood volume only 95μL
• Multi-combination parameters
• Self-made long life maintenance free electrodes
• Maximum 90s result from aspiration, less than 120s from sample to sample
• Long-lasting fluid system
• Preheats reagents and sample

Easy to use

• The sample adaptor is suitable for both syringe and capillary samples.
• The sample probe’s wiper provides convenience, sample integrity and user safety

Fast data input

• Easy sample and patient ID input
• Convenient bar-code calibrants and Auto-QC cartridge replace
• Easy bar-code consumables identification
• Rich data management
• RS-232 interface
• LIS connection under HL7 protocol
• Data backup with USB port

Compact, flexible

• Size(mm) W*H*D: 400×574×344
• Easy move with rolling stand
• Nickel-metal hydride battery,3.0Ah

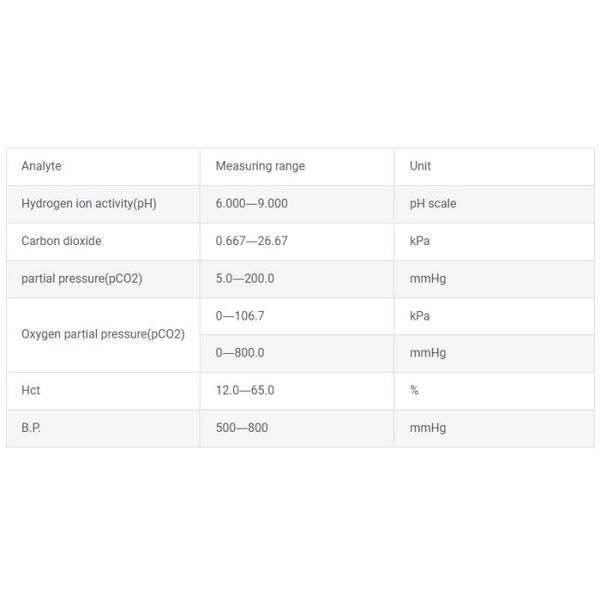

Test Menu

• pH, pCO₂ , pO₂ , Hct

• pH(TC): pH temperature corrected
• pCO2 (TC): pCO2 temperature corrected
• pO2 (TC): pO2 temperature corrected
• TCO2: 0-50mmol/L
• HCO3: 0-50mmol/L
• Beb: -25.0-25mmol/L
• Beecf: -25.0-25mmol/L
• SBC: 0-50mmol/L
• SO2%: 40-100.0%
• AG: Anion gap
• RI: 0.0-70.0
• AaDO2: 0-700mmHg
• O2SAT: Oxygen Saturation
• tHb(c): Hemoglobin(Calculated)
• Sample: Whole blood, Serum, Plasma, Dialysate, CSF
• Test items: pH，pCO2， pO2 ，Hct
• Input parameter:
  • Patient temperature
  • Hemoglobin
  • FiO
  • B.P.
• Interface:
  • Serial Line RS-232
  • TCP/IP interface
  • USB port
  • Integrated Bar-code reader
• Analysis time: <90s
• Sample volume:
  • 95μL Whole blood
  • 50μL Capillary blood
• Calibration: Automatic， programmable1-point and 2-point calibration
• Data storage: >10000
• Display:  10.4” TFT touch screen
• Battery: Nickel-metal hydride battery 3.0Ah
• Printer:  Build-in Thermal printer70mm
• Barcode reader:  Up to 14 kinds barcode type
• Instrument: 400（W）*574（H）*344（D）mm3
• CAL PAK: 258（W）*180（H）*70（D）mm3
• AUTOQC: 103（W）*180（H）*70（D）mm3
• Weight: 30Kg
• Work environment: 15℃~30℃
• Storage environment: 5℃~40℃
• Electricity: 100-240V~50/60Hz
