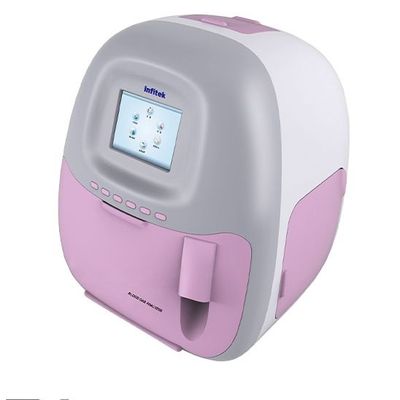

Infitek -Model BGA-150-7 -Blood Gas and Electrolyte Analyzer

Blood gas and electrolyte analyzer includes blood gas measuring items (PH, PCO2, PO2). electrolyte

measuring items (Na+, K+, CH, Ca2+). It is used to detect partial pressure of Carbon Dioxide (PCO2),and partial pressure of Oxygen (PO2) value.

Clinical Dept.

ICU, Examination Dept., Respiration Medicine Dept, Pediatrics ICU, Neurosurgery, Cardiology Dept,

Anesthesia Dept., Surgical Dept., Emergency Dept., etc.

Blood gas and electrolyte analyzer is considered the most important tool for diagnosis in patients with either respiratory or metabolic abnormalities.

• Measurement Items: PH, PCO2,PO2, Na+, K+, Cl-,Ca2+
• Sample: Whole blood 150ul
• Testing time: 50s
• Test method: Automatic sampling

• Model: BGA-150-7
• Measurement Items: PH, PCO2,PO2, Na+,K+, Cl-,Ca2+
• Calculation Parameters: PH(TC), PCO2(TC), PO2(TC),HCO3, SBC, BE, Beecf,TCO2, SO2%,P50,A-Ado2,RI,Tca, nCa

• Product: Blood Gas and Electrolyte Analyzer, BGA-150-7
• Sample: whole blood 150ul
• Test Method: automatic sampling
• Testing time: 50s
• Printer: build-in thermal printer
• Display screen: 8″TFT colorful LCD touch screen
• Storage: ≥5000 test results
• lnterfaces: RS232
• Power supply: 100v~240V , 47Hz~63Hz

1. Multi- function Detection

Besides for the detection of blood gas, it also has option to test electrolyte items K+, Na+, CI-, and Ca2+, allowing for multi – function detection.

2. Advanced Technology

Solid electrode technology

Liquid calibration technology

Wet measurement mode, with good repeatability and high accuracy

3. Cost-effective

Catridge type reagent package

4. Easy Operation

8”colorful graphical touch screen operation

Each measurement channel can be used separately.

1. A) 24 hours continuous working, make sure of detection in time.
2. B) Sampling system washed automatically, avoid blocking.
