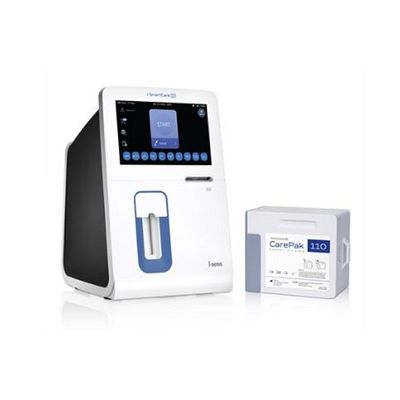

i-SmartCare - Model 10 - Blood Gas, Electrolyte & Metabolites Analyzer

• Single All-in-one multi-test cartridge POC system for Whole Blood Gas Testing
• No on-site maintenance or technical service required
• Light & compact in size, optimized for POC
• Intuitive and Easy to use GUI with graphic, voice and visual guidance
• Built-in high capacity battery allows for mobility and continuous testing (2 hours battery life)
• All-in-one cartridge system contains all needed reagents, micro-sensors, fluidics and waste allowing for easy and simple management and storage at room temperature
• Wide range of cartridge sizes allow for standardization of platform and efficient use across Hospital locations
• Ensures accurate test results through automatic calibration and system performance monitoring
• Syringe, capillary and QC samples without adapters
• Built-in barcode scanner & printer
• Self-cleaning sample probe prevents contamination between samples
• Fast turn-around time with patient test results in 50 seconds
• Increased usability by providing multi-language GUI and voice guidance
• Illuminated sampling area for easier testing in near patient conditions
• i-SmartCare™ 10 Data Management System (*) allows for device, sample, QC and operator monitoring & management across multiple installations across multiple installation
• Automatic & continuous quality monitoring, management & reporting with i-SmartCare™ 10 Data Management System with CareQM (*)

Analyzer

• Dimension / Weight : 269 X 391 X 255 mm / 8.4 kg
• Display : 9 inch TFT LCD touchscreen
• Printer : 2 inch built-in thermal printer
• Interface : USB (2-Port), Serial (RS-232), LAN (RJ45 Ethernet)
• Power : 100-240 VAC, 50/60 Hz
• Built-in battery : Up to 2 hours of sample measurement (Lithium ion cell)

Cartridge

• Cartridge type / parameters :

• CarePak 106 Cartridge
• Measured parameters: pH, Na+, K+, Ca2+, Cl–, Hct
• Calculated parameters: pH(T), ctHb, Ca2+(7.4)
• CarePak 108 Cartridge
• Measured parameters: pH, pCO2, pO2, Na+, K+, Ca2+, Cl–, Hct
• Calculated parameters: pH(T), pCO2(T), pO2(T), ctCO2, cHCO3–, cHCO3–(std), BE(ecf), BE(B), Anion gap, ctHb, Ca2+(7.4), pO2(A-a), sO2
• CarePak 110 Cartridge
• Measured parameters: pH, pCO2, pO2, Na+, K+, Ca2+, Cl–, Hct, Glu, Lac
• Calculated parameters: pH(T), pCO2(T), pO2(T), ctCO2, cHCO3–, cHCO3–(std), BE(ecf), BE(B), Anion gap, ctHb, Ca2+(7.4), pO2(A-a), sO2
• Sample type / Sample volume : Heparinized whole blood / 100 μL
• Sample introduction method : Aspiration
• Measurement time : 50 seconds
• Calibration : Automatic or manual
• Cartridge specifications :

• 50 tests / 2 or 3 weeks
• 100 tests / 2 or 3 weeks
• 200 tests / 2 or 3 weeks
• 300 tests / 2 or 3 weeks
• Shelf life : 6 months from manufacturing date
