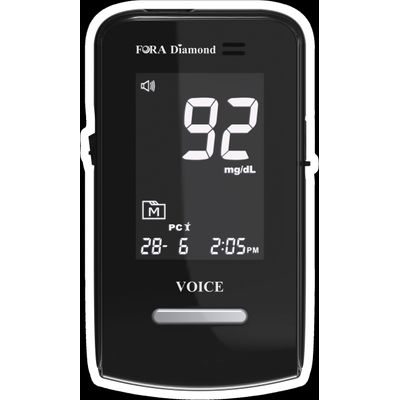

Fora -Model Diamond VOICE (DM20) -Blood Glucose Monitoring System
Diamond Series Test Strips (GDH-FAD)
With the new IST Technology the Diamond Series strips ensure high accuracy and precision at wide hematocrit ranges.
Talking Guidance
Allows user to know the test results without looking at the screen. Ideal for the elderly and visually impaired people.
No coding
Removes the needs for using a code card, improving the users’ experience.
Bluetooth 4.0 or USB connectivity (a/b)
Transfer data to any device with an USB cable (DM20a), or Bluetooth (DM20b) connectivity.
Strip Ejection Design
The hygienic strip ejection design allows users to remove test strips without contact, reducing the possibility of cross infection.
Ketone warning
Be aware of abnormal ketone levels at glance.
| Test Strip |
Diamond Series Test Strips |
| Enzyme / Measurement technology |
GDH-FAD |
| Coding |
No coding |
| Sample volume |
0.5μL |
| Measuring time |
5 seconds |
| AST (Alternative Site Testing) |
Palm, forearm and upper arm |
| Blood sample source |
Capillary and venous whole blood |
| HCT range |
20 – 60% |
| Day average |
7, 14, 21, 28, 60, 90 days |
| Daily alarm |
4 |
| AC/PC recording |
Yes |
| Measurement range |
20 ~ 600 mg/dL |
| LCD backlight |
Yes |
| Universal Tone |
Talking guidance |
| Meter dimensions (L x W x H) |
93 x 26 x 15.5 mm |
| Weight (without battery) |
31.4 g |
| Power supply |
Li-Polymer |
| Memory capacity |
450 |
| Operating temperature |
10°C ~ 40°C (50°F to 104°F), below 85% R.H. (non-condensing) |
| Connectivity |
Micro-USB (DM20a) / Bluetooth 4.0 (DM20b) |
