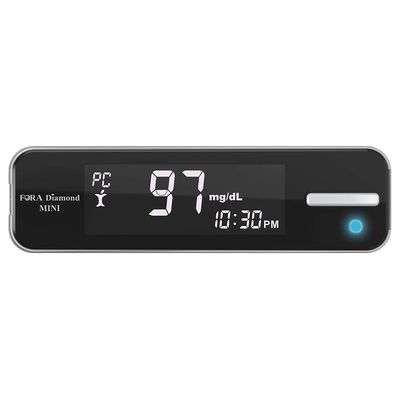

Fora -Model Diamond MINI (DM30) -Blood Glucose Monitoring System
Diamond Series Test Strips (GDH-FAD)
With the new IST Technology the Diamond Series strips ensure high accuracy and precision at wide hematocrit ranges.
No coding
Removes the needs for using a code card, improving the users’ experience.
Tiny blood sample
Only 0.5μL of blood sample required.
Quick results
Accurate measurement results in 5 seconds.
LCD backlight
Can be easily used in dark environments.
Bluetooth 4.0 or USB connectivity (a/b)
Transfer data to any device with an USB cable (DM30a), or to iFORA BG app via Bluetooth (DM30b) connectivity.
| Test Strip |
Diamond Series Test Strips |
| Enzyme / Measurement technology |
GDH-FAD |
| Coding |
No coding |
| Sample volume |
0.5μL |
| Measuring time |
5 seconds |
| AST (Alternative Site Testing) |
Palm, forearm and upper arm |
| Blood sample source |
Capillary and venous whole blood |
| HCT range |
20 – 60% |
| Day average |
7, 14, 21, 28, 60, 90 days |
| Daily alarm |
4 |
| AC/PC recording |
Yes |
| Measurement range |
20 ~ 600 mg/dL |
| LCD backlight |
Yes |
| Universal Tone |
Yes |
| Meter dimensions (L x W x H) |
86 x 53.6 x 19.5 mm |
| Weight (without battery) |
52.4 g |
| Power supply |
Rechargeable li-polymer battery |
| Memory capacity |
450 |
| Operating temperature |
10°C ~ 40°C (50°F to 104°F), below 85% R.H. (non-condensing) |
| Connectivity |
Micro-USB (DM30a) / Bluetooth 4.0 (DM30b) |
