COLLIN -Blown Film Dies with Axial or Radial Spiral Mandrel Distributor
COLLIN Lab & Pilot Solutions specializes in the manufacture of advanced blown film dies equipped with axial or radial spiral mandrel distributors. These dies cater to a broad range of applications, from mono up to 13-layered blown film structures. Their multi-layer capability is tailored for seamless retrofitting, allowing transition between configurations, such as 3-layer to 5-layer setups. Besides standard materials handling, these dies are capable of managing high temperatures up to 420°C and integrate specialized design elements for unique materials. Options like Inner Bubble Cooling (IBC) and Continuous Bubble Diameter Control (CBC) enhance product performance, with additional solutions such as separate control units for up to 20 heating zones. These products offer precision for diverse applications, from pipe and hose dies to specialized medical dies and multi-channel dies, ensuring adaptability and consistent quality in film production processes.
COLLIN offers mono blown film dies with axial or radial spiral mandrel distributor – depending on the desired expandability or application.
Multi-layer dies for 2 up to 13 layers are suitable for different numbers of layers. For these processes, COLLIN delivers dies with radial spiral mandrel distributors, moreover, different mandrels and matrix are available. The retrofitting between different layers can easily and quickly be realised – e. g. from 3-layer to 5-layer.
Axial spiral mandrel distributor blown film dies
- Use: for mono-layer blown films
- Standard die diameter: 25 mm to 100 mm
- Due to the own design of the die geometry and the simulation of the flow in the die, also special dies for materials with difficult flow characteristics can be developed.

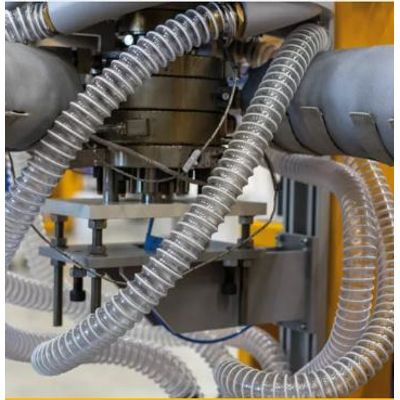

Radial spiral mandrel distributor blown film dies
- Use: for multi-layer blown films
- Layers: up to 13 layers, easy change between different layer configurations
- Highest layer thickness constancy
- High flexibility by easy retrofitting between different layer configurations
- 3 different standard plates for different throughputs
- Different mandrels and matrices are available
Materials
Customers
- Raw material manufacturers
- Compounding and refining companies
- Processing companies
- Universities and institutes
- Pharmaceutical companies
- Companies in the medical sector
- Inner Bubble Cooling IBC (beginning with RWT 80)
- Fully linear, continuous bubble diameter control (CBC), also available as retrofit, layer splitter for 1, 3 or 4 layers
- High-temperature dies up to 420°C
- Die design for special materials
- Separate control cabinets for controlling up to 20 heating zones
- Additional decoupling plates for thermal separation
- Layer plates for integrating one or more coloured strips
