Onda -Model AH-Series -Broad Mix of In-Line Medical Hydrophone Preamplifiers
FromOnda Corporation
A broad mix of preamplifiers are offered to support your application. There are several submersible preamplifier models offered: AH-2010, AH-2020, and AG-2010. The ATH-2000 in-line attenuator is also available to provide a larger dynamic range. Finally, there are a variety of hydrophone mounts, adapters and cables available to provide best access to the measurement working area.
A broad mix of in-line preamplifiers and accessories are offered to enhance hydrophone measurements by increasing the gain, preserving the flatness response, extending the dynamic range, and minimizing reflections.
- Flat frequency response
- Low noise - up to 78 dB dynamic range
- Fully immersible
- Only one cable in the tank
- Waterproof mating to Onda hydrophones
- Compatible with any hydrophone

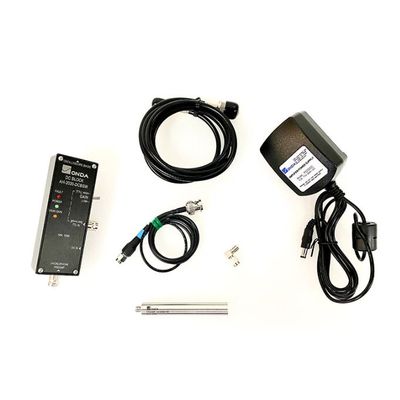

- Preamplifier
- Power supply
- DC block
- 1m coaxial cable (SMA-BNC)
- 1.5m coaxial cable (BNC-BNC)
- Right angle adapter
- Calibration certificate.
