JN SCIENCETECH - Bubble Traps
Bubble traps are an essential part of the pharmaceutical-, food, and chemical industries and are responsible for the extraction of gasses from liquid streams, they could also act as a pulsation damper. Bubble traps are available from lab scale 1L to 20L. All of the materials come with the proper certificates for use in pharmaceutical and food environments.
| Part No |
Dia | Ports |
Port Sizes | Operating Pressure Bar |
Material |
| 24131 | 4 inches | 2 | 1/2 | 3/4 inch | Glass 6.0 | Acrylic 7.0 | SS 316 L |
| 24132 | 4 inches | 3 | 1/2 | 3/4 inch | Glass 6.0 | Acrylic 7.0 | SS 316 L |
| 24133 | 6 inches | 2 | 3/4 | 1.0 inch | Glass 5.5 | Acrylic 6.0 | SS 316 L |
| 24134 | 6 inches | 3 | 3/4 | 1.0 inch | Glass 5.5 | Acrylic 6.0 | SS 316 L |
| 24135 | 8 inches | 2 | 1.0 | 2.0 inch | Glass 5.0 | Acrylic 5.0 | SS 316 L |
| 24136 | 8 inches | 3 | 1.0 | 2.0 inch | Glass 5.0 | Acrylic 5.0 | SS 316 L |
| 24137 | 10 inches | 2 | 1.5 | 2.0 inch | Glass 3.5 | Acrylic 4.0 | SS 316 L |
| 24138 | 10 inches | 3 | 1.5 | 2.0 inch | Glass 3.5 | Acrylic 4.0 | SS 316 L |
For Lid Controls, Base Inlets and Outlets are fitted with Try Clamps Ferrules. Clamps may fitteed with (Optional) 1/2 | 3/4 | 1.1/2 | 2.0 inches ports on request.

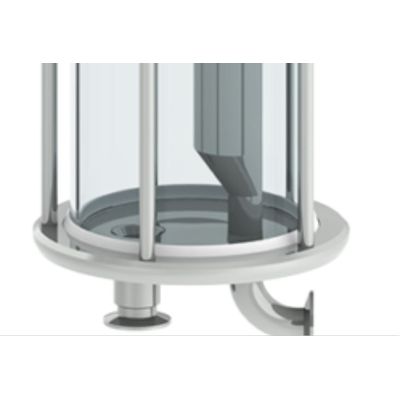

Bubble Traps are used to remove process gases in pharmaceutical and process applications. The design of our bubble trap has been carefully developed with a minimum number of crevices to help prevent the build-up of bacteria. In addition, when installed in an upright position, the angled surfaces of our bubble trap encourage self-draining, making it easier to wash down the unit and ensure hygiene standards are maintained.
All threads are self-enclosed for easy wipe down, whilst shouldered tie rods ensure correct O-ring compression, making reassembly and maintenance simple. In addition, all welds are removed, smoothed and polished to reduce areas where bacteria can accumulate and facilitate easy cleaning.
- All Products are manufactured from food/pharmaceutical grade 316L Stainless
- Optional Hastelloy materials available
- Sanitary Tri-Clamp Connections or optional flanged or threaded ports
- Food Grade EPDM, Viton, Silicone or Teflon, optional,
- Glass or Acrylic available for In-Line Sight glasses.
- High Polish 15-20 Ra Electropolish (Optional) Finish with Certification
