Adamant Valves -Model Sanitary Fittings -Butt-weld Reducers for Sanitary Pipeline Systems

SHARE
Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders. Sanitary butt-weld fittings are with butt-weld ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.
Most popular related searches
cosmetic pharmaceutical
pharmaceutical chemical
pharmaceutical beverage
cosmetic chemical
pharmaceutical industry

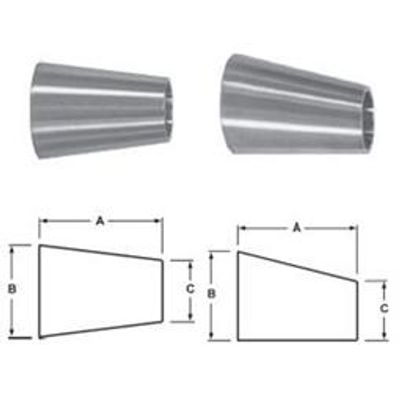

SS31W-- Buttweld Concentric Reducers, Polish ID/OD

Tube OD
(Size)

A

B

C

Nominal
Wall

Part Number
304

Part Number
316L

3/4" x1/2"

1.000

0.750

0.500

0.065

SS31W7-0.75 x 0.5-304

SS31W7- .75 x .50-316L

1" x 1/2"

1.500

1.000

0.500

0.065

SS31W7- 1 x 0.5-304

SS31W7- 1 x .50-316L

1" x 3/4"

1.000

1.000

0.750

0.065

SS31W7- 1 x 0.75-304

SS31W7- 1 x .75-316L

1.5" x1/2"

3.500

1.500

0.500

0.065

SS31W7- 1.5 x 0.5-304

SS31W7- 1.5 x .50-316L

1.5" x3/4"

3.000

1.500

0.750

0.065

SS31W7- 1.5 x 0.75-304

SS31W7- 1.5 x .75-316L

1.5" x 1"

2.000

1.500

1.000

0.065

SS31W7- 1.5 x 1-304

SS31W7- 1.5 x 1-316L

2" x 1"

4.000

2.000

1.000

0.065

SS31W7- 2 x 1- 304

SS31W7- 2 x 1- 316L

2" x 1.5"

2.000

2.000

1.500

0.065

SS31W7- 2 x 1.5-304

SS31W7- 2 x 1.5-316L

2.5" x1.5"

4.000

2.500

1.500

0.065

SS31W7- 2.5 x 1.5-304

SS31W7- 2.5 x 1.5-316L

2.5" x 2"

2.000

2.500

2.000

0.065

SS31W7- 2.5 x 2-304

SS31W7- 2.5 x 2-316L

3" x 1.5"

6.000

3.000

1.500

0.065

SS31W7- 3 x 1.5-304

SS31W7- 3 x 1.5-316L

3" x 2"

4.000

3.000

2.000

0.065

SS31W7- 3 x 2- 304

SS31W7- 3 x 2- 316L

3" x 2.5"

2.000

3.000

2.500

0.065

SS31W7- 3 x 2.5-304

SS31W7- 3 x 2.5-316L

4" x 1.5"

10.00

4.000

1.500

0.083

SS31W7- 4 x 1.5-304

SS31W7- 4 x 1.5-316L

4" x 2"

8.000

4.000

2.000

0.083

SS31W7- 4 x 2- 304

SS31W7- 4 x 2- 316L

4" x 2.5"

6.000

4.000

2.500

0.083

SS31W7- 4 x 2.5-304

SS31W7- 4 x 2.5-316L

4" x 3"

4.000

4.000

3.000

0.083

SS31W7- 4 x 3- 304

SS31W7- 4 x 3- 316L

6" x 2"

5.500

6.000

2.000

0.109

SS31W7- 6 x 2- 304

SS31W7- 6 x 2- 316L

6" x 3"

5.500

6.000

3.000

0.109

SS31W7- 6 x 3- 304

SS31W7- 6 x 3- 316L

6" x 4"

5.500

6.000

4.000

0.109

SS31W7- 6 x 4- 304

SS31W7- 6 x 4- 316L

SS31CW--Clamp x Weld Concentric Reducers, Polish ID/OD



Tube OD
(Size)

A

B

C

Nominal
Wall

Part Number
304

Part Number
316L



3/4" x 1/2"

1.500

0.750

0.500

0.065

SS31CW7- 0.75 x 05- 304

SS31CW7- .75 x .50- 316L

1" x 1/2"

2.000

1.000

0.500

0.065

SS31CW7- 1 x 0.5- 304

SS31CW7- 1 x .50- 316L

1" x 3/4"

1.500

1.000

0.750

0.065

SS31CW7- 1 x 0.75- 304

SS31CW7- 1 x .75- 316L

1.5" x 1/2"

4.000

1.500

0.500

0.065

SS31CW7- 1.5 x 0.5- 304

SS31CW7- 1.5 x .50- 316L

1.5" x 3/4"

3.500

1.500

0.750

0.065

SS31CW7- 1.5 x 0.75- 304

SS31CW7- 1.5 x .75- 316L

1.5" x 1"

2.500

1.500

1.000

0.065

SS31CW7- 1.5 x 1- 304

SS31CW7- 1.5 x 1- 316L



2" x 1"

4.500

2.000

1.000

0.065

SS31CW7- 2 x 1- 304

SS31CW7- 2 x 1- 316L



2" x 1.5"

2.500

2.000

1.500

0.065

SS31CW7- 2 x 1.5- 304

SS31CW7- 2 x 1.5- 316L



2.5" x 1.5"

4.500

2.500

1.500

0.065

SS31CW7- 2.5 x 1.5- 304

SS31CW7- 2.5 x 1.5- 316L



2.5" x 2"

2.500

2.500

2.000

0.065

SS31CW7- 2.5 x 2- 304

SS31CW7- 2.5 x 2- 316L



3" x 1.5"

6.500

3.000

1.500

0.065

SS31CW7- 3 x 1.5- 304

SS31CW7- 3 x 1.5- 316L



3" x 2"

4.500

3.000

2.000

0.065

SS31CW7- 3 x 2- 304

SS31CW7- 3 x 2- 316L



3" x 2.5"

2.500

3.000

2.500

0.065

SS31CW7- 3 x 2.5- 304

SS31CW7- 3 x 2.5- 316L



4" x 1.5"

10.625

4.000

1.500

0.083

SS31CW7- 4 x 1.5- 304

SS31CW7- 4 x 1.5- 316L



4" x 2"

8.625

4.000

2.000

0.083

SS31CW7- 4 x 2- 304

SS31CW7- 4 x 2- 316L



4" x 2.5"

6.625

4.000

2.500

0.083

SS31CW7- 4 x 2.5- 304

SS31CW7- 4 x 2.5- 316L



4" x 3"

4.625

4.000

3.000

0.083

SS31CW7- 4 x 3- 304

SS31CW7- 4 x 3- 316L



6" x 2"

6.000

6.000

2.000

0.109

SS31CW7- 6 x 2- 304

SS31CW7- 6 x 2- 316L



6" x 3"

6.000

6.000

3.000

0.109

SS31CW7- 6 x 3- 304

SS31CW7- 6 x 3- 316L



6" x 4"

6.000

6.000

4.000

0.109

SS31CW7- 6 x 4- 304

SS31CW7- 6 x 4- 316L
