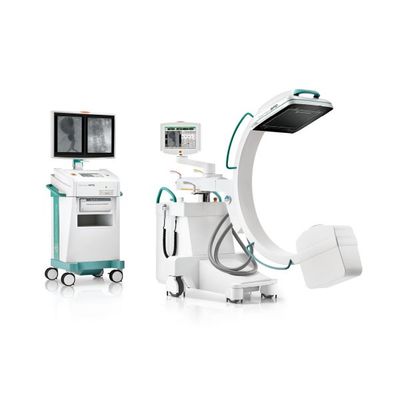

Ziehm VISION -Â Model RFD - C-Arms with Flat-Panel Detector
The treatment of cardiovascular and degenerative musculoskeletal conditions calls for high-performance intraoperative imaging technologies. Incorporating the latest CMOS technology for excellent image quality, the Ziehm Vision RFD is the ideal C-arm. In addition to the cardiovascular-focused 20.5 cm x 20.5 cm flat-panel version, the Ziehm Vision RFD is available with a 31 cm x 31 cm CMOS flat-panel detector. This is the preferred model for highly demanding orthopedic, trauma or cardiovascular interventions that require more information in one image. Both systems are equipped with a powerful generator for optimum penetration, Advanced Active Cooling to enable longer procedures and an intuitive operating concept for high clinical standards.
Trust in over 10 years of flat-panel performance now enhanced with CMOS imaging excellence
- Latest CMOS flat-panel technology
- Optimal soft tissue and bone contrast with high spatial resolution and low noise levels
Unlock the power to perform with advanced generator and cooling technology
- Pulsed monoblock generator with 25 kW power performance
- Advanced Active Cooling for optimal generator temperature
Deliver advanced surgical care with the Ziehm Usability Concept
- Best-in-class ergonomics with a footprint of only 0.8 m² and 165 degrees of orbital movement
- Up to three synchronized, intuitive touchscreen user interfaces with SmartEye technology
- Ziehm Usability Concept combining a unique and finely tuned set of hardware features with seamlessly integrated software functionalities
Reduce exposure significantly with the next-generation SmartDose4
- Comprehensive dose concept for high image quality and minimized dose
- Automatic optimization of dose and image quality with advanced anatomical programs
- Dedicated functions to significantly reduce exposure in pediatric surgery5
- Beam Filtration for reduced skin entrance dose without compromising on image quality for all CMOSline systems
- Imaging technology :CMOS, flat-panel, 20.5 cm x 20.5 cm / 31 cm x 31 cm a-Si, flat-panel, 30 cm x 30 cm
- Detector resolution : CMOS: 2 k x 2 k / 3 k x 3 k a-Si: 1.5 k x 1.5 k
- Power generator : 25 kW, pulsed monoblock generator
- Ziehm Usability Concept : available
- SmartDose :available
- Advanced Active Cooling (AAC) :available
- Orbital Movement :165 degrees
