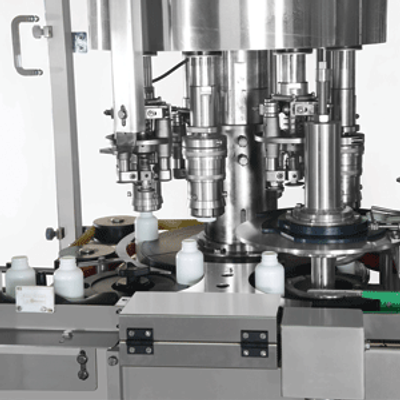

Ace -Capping Machinery for Pharma and Healthcare

SHARE
The capping machinery offered by Ace Technologies is designed for the pharma and healthcare sector, focusing on efficiency and precision. The machine features all contact parts made from SS304 or food-grade materials, ensuring high standards of hygiene and safety. The structure and all exposed parts are covered with SS304, and it includes polycarbonate hoods for added protection. The machinery operates at speeds ranging from 40 to 100 BPM, depending on the bottle size and shape. It is a critical component of dry syrup and liquid filling lines, tailored to meet the stringent requirements of pharmaceutical and healthcare products.
Most popular related searches
pharmaceutical healthcare
healthcare pharmaceutical
healthcare industry
healthcare product
pharmaceutical product
pharmaceutical production
pharmaceutical machinery
  • No container no cap arrangement.
  • S.S. elegantly matt finished body.
  • Single motor synchronizes conveyor, star wheel, & platform turret.
  • Adjustable height of conveyor belt, to align with other machine of the line.
  • Sealing pressure can be varied to suit different gauge and size of caps.
  • Specially designed hopper is provided to increase storage capacity of bowl.
  • Low noise level, low power consumptions.
  • Self-lubricating UHMW-PE guide profile for low friction wears surface, smooth and noiseless conveying.
  • Drain tray around the machine platform.
  • SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
  • Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret & capping bowl.
  • Universal coupling for quick and easy setting of In-feed worm.
  • Adjustable bottle height gauge for easy and quick setting. The Height adjustment is motorized.
  • Sealing pressure can be varied to suit different gauges and size of caps.

MOC: All contact parts in S.S.304 or Food Grade Material.

Structure & all exposed parts and structure cladded or covered with S.S.304. Polycarbonate Hoods

Speed : 40 -100 BPM (Subject to Bottle Size & Shape)

  • Low Air Pressure Indication.
  • No Bottle at infeed, machine stop.
  • No Bottle No cap mechanism.
  • Out Feed Bottle jammed indicator.
  • Low level of caps in chute, machine stop
  • Cap upside down in chute, machine stop.
