Carbon Fibre Slip on for X-ray Grid
The use of grids in digital radiology (DR) necessitated a reconsideration of our well-known and approved type of slip-on (frame of stainless steel with carbon fibre front). The determining aim was to develop a lightweight slip-on-grid as the weight just of a digital detector 35x43 cm (outside dimensions 459 x 383 x 16 mm) is up to 5 kg – depending on the manufacturer.

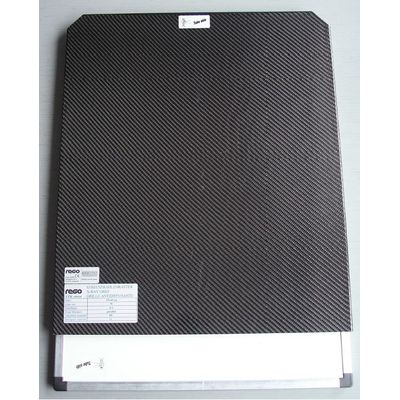

The slip-on grid 35 x 43 cm completely made of carbon fibre
- suitable for grids of any specification
- high class material
- steady construction
- one single pieced frame
- higher permeability of radiation compared to a similar slip-on grid of plastic material
- to be used
- for digital detector (DR) 35x43
- for cassettes with imaging screens (CR) 35x43
- for cassettes with film/screen system 35x43
- lower weight
- without grid just 0,65 kg
- appr. 10 % reduction of weight compared to a slip-on of stainless steel
- appr. 28% reduction of weight compared to a slip-on of plastic material
- Carbon fibre frame with two guiding rails and stop
- mounting of grid from the inside
- mounting of a protection cover of Carbon fibre or transparent Makrolon on the backside of the grid
The dimensions of the digital detectors can differ from the size mentioned above – depending on the manufacturer. This is why the customer has to verify the sizes to be correct. We can offer slip-ons of any other size as "made to order". In case the slip-n is intended to be used for cassettes containing imaging screens (CR) or film-screen system we are going to adapt the light inner height to the thickness of the cassette.
