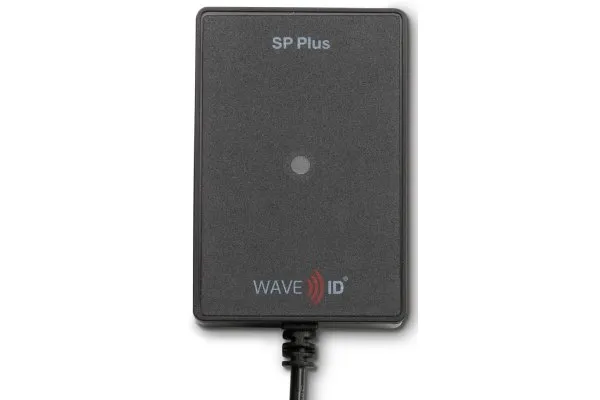

WAVE ID -Model SP Plus -Card Reader

SHARE

As one of our most flexible offerings, the WAVE ID SP Plus card reader is a dual-frequency smart card reader. For single frequency requirements, the WAVE ID SP is available for 13.56 MHz credentials. Both the WAVE ID SP Plus and WAVE ID SP maximize the value of your existing card system—from proximity to contactless smart card—making use of that data for additional security protection for applications such as printers, healthcare devices, process controllers, autonomous robots and more. This slim, dual-frequency card reader is also “future-proofed” with the capability to update SIM technology to read 800, 805 and 80M cards based on your credential needs.

Most popular related searches

healthcare manufacturer

healthcare system

healthcare industry

healthcare product

USB models connect directly to a USB port and can be configured to send data as keystroking or non-keystroking
Compatible with Windows XP^®, 7^®, 8.1^®, 10^®; Linux and Mac OS
Compatible with a variety of purpose-built devices such as multifunction printers, time clocks, kiosks or protective enclosures
Standard four card configurations (two are pre-set; two are user-definable)
Ideal for enrollment into third-party software or for single sign-on integrators
User-adjustable beeper volume can be set to high, low or off as appropriate for the work environment
13.56 MHz auto-tuning ensures optimal power transfer to avoid interference
Supports both LEGIC^® advant^™ and prime^™ smart cards

Small, thin form factor enables embedded and integrated applications or OEM installations in recessed compartments or external mounting configurations
Streamlines the sign-on process, improving access control, security, and organizational workflow
With flash memory and supporting nearly all card types, the programmable reader allows users to quickly configure the readers output to meet their needs
Serves government, healthcare, manufacturing, industrial or enterprise needs

Operating Conditions

Operating Frequency : Dual 125/132 kHz and 13.56 MHz
Typical Maximum Read Range : 1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions
Supported Card Types : For a full list of supported card types, click here.

Physical Characteristics

Dimensions : 0.6 in × 2 in × 3 in(1.5 cm × 5.1 cm × 7.6 cm)
Weight : 2.7 oz(76.5 g)
Cable Length : 6`, 7", 5", & 2.5" (Custom Lengths Available. Call our Sales department at (866) 439-4884)
Indicators : Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)
Form Factor : Desktop, SP, Non-Housed
Power Supply : USB Self-powered
Interface : USB
Software Development Kit (SDK) : Yes

Environmental Usage

Operating Temperature Range : -30? to 65? (-22? to 150? )
Operating Humidity Range : 5% to 95% relative humidity, non-condensing
Storage Temperature Range : -40? to 85? (-40? to 185? )

General Information

Certifications : FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment: RoHS, REACH. rf IDEAS products are certified in various additional countries worldwide. Contact rf IDEAS for additional details.
Warranty : One year for material/workmanship defects. See complete policy for details.
Compatible Operating Systems : Windows 7, 8, 10, Linux
