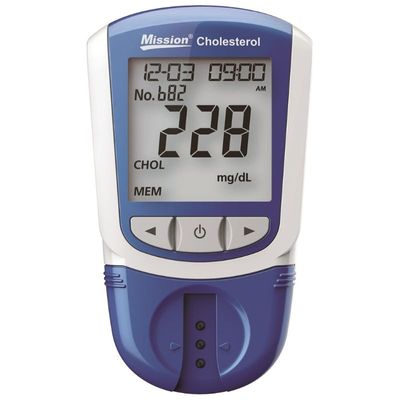

Mission -Cholesterol Monitoring System

• Results in 2 minutes
• Complete Lipid panel
• Automatic cardiac risk assessment
• Large LCD screen for easy reading
• Test Strips with color coding for easy identification
• CE approved for both professional and self-testing
• FDA (510(k)) approved

Step 1
Insert strip

Step 2
Apply sample

Step 3
Read results

3 in 1 testing
5 Parameter Lipid Panel & Individual Tests. Results in ≤ 2 minutes. Multiple sample types

Easy to Use
Handheld, ergonomic and patient friendly design. 3 simple steps: insert strip, apply sample with a capillary tube and read results

Premium Features
Cardiac Risk Assessment. Test devices with 18-month shelf life, room temperature storage and clinically proven accuracy

The?Mission®?Cholesterol system is a novel, handheld point-of-care device that generates rapid lipid panel test results.

With the?Mission® Cholesterol monitoring system, healthcare professionals can be assured that they are getting the?accuracy, reliability and cost efficiency they need to screen patients at risk of cardiovascular disease.

Efficient

• Complete lipid panel result in 2 minutes with the 3–in–1 lipid panel
• Uses a small aliquot of fingerstick whole blood allowing rapid testing
• 200 test memory capacity
• No calibration required

Reliable

• Simple and durable technology
• Tests comparable with laboratory standard results
• Test cassettes are stored at room temperature and have a long shelf life

Easy to use

• Large LCD display giving clear results
• Battery powered for remote testing allowing >1 000 tests per set
• Powerpack also available
• Simple one button test operation
• Mission safety lancets available

 The 3 in 1 Lipid Test

• Total Cholesterol (CHOL)
• High-Density Lipoprotein (HDL)
• Triglycerides (TRIG)
• Calculated Low-Density Lipoprotein, CHOL/HDL ratio
• Cardiac Risk Assessment (CHD)

Lancing Device & Lancets

• 6 adjustable depth settings for greater comfort

Safety Lancet I

• Needles automatically retract to ensure patient safety
• For single use only
• Encased sterile needles eliminate accidental injuries and contamination

Control Devices

• Use control devices to monitor meter performance

Control Solution

• Use control solution to confirm that the meter is working properly
• CHOL Control Solution Level 1 (Normal) and Level 2 (High)
• HDL/TRIG Control Solution Level 1 (Normal) and Level 2 (High)

Capillary Transfer Tubes: Glass Tipped

• 10 µL or 35 µL glass tipped capillary transfer tubes ensures enough sample is obtained

Adapter Kit

• Power Adapter allows user to power meter without batteries
• 4 different plugs available for use in different countries

Analyzer Type: Handheld Meter
Methodology: Reflectance Photometry
Type of Test: Total Cholesterol (CHOL), High-Density Lipoprotein (HDL), Triglycerides (TRIG), Calculated Low-Density Lipoprotein (LDL), CHOL/HDL ratio, Cardiac Risk Assessment (CHD)
Time to Results: ≤2 minutes
Memory: 200 Results with Date/Time
HCT: 30-50%
Specimen Volume: 10 μL (Individual Tests) or 35 μL (3-1 Lipid Panel Test)
Specimen Type: Capillary or Venous Whole Blood, Serum or Plasma
HDL Measurement Range: 15-100 mg/dL (0.39-2.59 mmol/L)
TRIG Measurement Range: 45-650 mg/dL (0.51-7.34 mmol/L)
PC Interface: Mini-USB
Operating Conditions: 15-40 °C (59-104 °F)
Storage Conditions: Meter: 0-50 °C (32-122 °F) Strip: 2-30 °C (36-86 °F)
Strip Shelf Life: 18 months
Power Source: 4 AAA Batteries or AC Adapter
Battery Life: >1,000 Tests
Meter Dimensions (L x W x H): 137 mm x 79 mm x 26 mm (5.4” x 3.1” x 1.0”)
Display Dimensions (L x W): 50 mm x 50 mm (2.0” x 2.0”)
Weight Excluding Batteries: 145 g (5.11 oz)
CHOL Measurement Range: 100-500 mg/dL (2.59-12.93 mmol/L)
