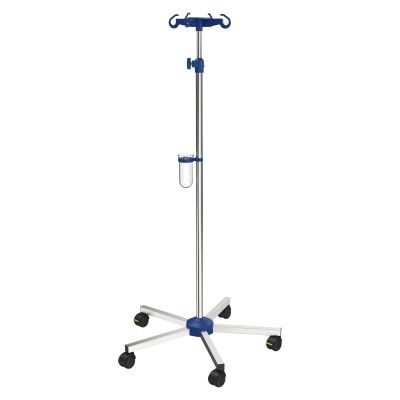

Provita - Model I-N41121 - Chromed Steel IV Stand Normal Care

Information

• Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.

Advantages

• effective infusion care by hanging safely IV-bottles and bags
• mobile use: at the right time at the right place

Technology

• all plastic parts are light-resisting
• castors with non-marking tread
• integrated pull-out guard avoids separation of the adjustable tubes
• safety bottle holder in accordance with DIN ISO 15375
• a sealing cap prevents the IV-pole from hygienical senstive liquids

Economy

• complete recyclability

Application

• optimal hygienic characteristics (wipe disinfection)
• very easy and fast assembly through a plug in and out system with only 1 screw connection
• comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element

• Product number: I-N41121
• Field of application: Normal Care
• Material: Chromed steel
• Colour of plastic parts: Blue
• Bottle Holder: Plastic
• Number of hooks (pcs.): 4
• Arrangement of the hooks: 90 to each other
• Type of height adjustment: screw height adjustment
• Maximum length/height (mm): 2,150
• Minimum length/height (mm): 1,350
• Inner tube diameter (mm): 18
• Outer tube diameter (mm): 25
• Length of outer tube (mm): 1,000
• Base diameter (mm): round, 635
• Base leg profile (mm): 25 x 25
• Base weight: Unweighted
• Castors: Twin castors
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 9.5
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2

Packaging dimensions

• Packaging unit: Pair
• Width Box1: 0,19 m
• Height Box1: 0,1 m
• Length Box1: 1,19 m
• Weight Box1: 7,6 kg

Packaging unit: Unit

• Width Box1: 0,19 m
• Height Box1: 0,1 m
• Length Box1: 1,19 m
• Weight Box1: 4,1 kg
