PLUX -Model 810122215 -ClassBIT Engineering Teaching Kit
ClassBIT Engineering is a teaching bundle designed for Engineering (biosignals-based) Classes and Disciplines, e.g. Biomedical Engineering, BioEngineering, Physical Engineering, Electronic Engineering, Computer Engineering, etc. It includes 10 individual biosignals sets fully equipped with different biosensors, including ECG, EMG, EEG, EDA, ACC and accessories.
Most popular related searches
electromyography
biomedical engineering
EEG sensor
heart rate
electrocardiogram
biomedical
electroencephalography
electrocardiography
muscle fatigue
muscle research
Included Sensors & Actuators:

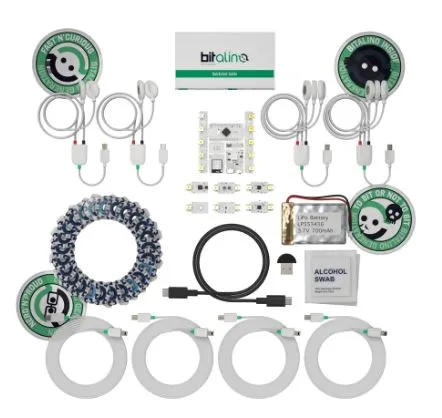

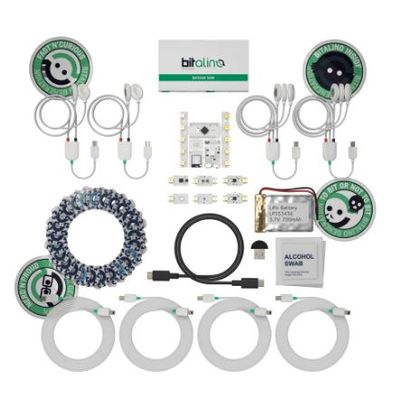

ClassBIT Engineering contains 10 x Individual Student Kits
Each Individual Student Kit contains the following sensors:
- 1 x BITalino Core BT/BLE
- 1 x Battery 700 mAh
- 1 x Electromyography sensor (EMG)
- 1 x Electrocardiography sensor (ECG)
- 1 x Electrodermal Activity sensor (EDA)
- 1 x Electroencephalography sensor (EEG)
- 1 x Accelerometer sensor (ACC)
- 1 x Pushbutton sensor (BTN)
Included Accessories
Each Individual Student Kit contains the following accessories:
- 4 x Sensor Cable
- 2 x 2-Lead Electrode Cable
- 2 x 3-Lead Electrode Cable
- 1 x Micro USB Charging Cable
- 1 x BTH Dongle
- 1 x Electrode Pack
- 2 x Alcohol Swabs
- 4 x BITalino Stickers
- 1 x Quick Start Guide
Included Software:
- OpenSignals Desktop and Mobile
Optional Software:
Sensors that can be included in this kit
- Pre-Assembled Sensors;
- Photoplethysmography (PPG) Sensor,
- Respiration (PZT) Sensor;
- High Definition Temperature (NTC) Sensor;
- Electrooculography (EOG) Sensor;
- Electrogastrography (EGG) Sensor;
- FlexiForce (FSR) Sensor
- Analog ports: 6 generic inputs
- Digital Ports: 2 in (1-bit) + 2 out (1-bit)
- Resolution: 4 in (10-bit) + 2 in (6-bit)
- Sampling Rate: 1, 10, 100 or 1000 Hz
- Battery Life: >10h streaming
- Communication: Bluetooth Class II
- Range: Up to 10 m
- MCU: Atmel ATMega328p chipset
- Battery: Built-in 3.7V Li-Po battery charger
- Size: 65 x 5 mm
