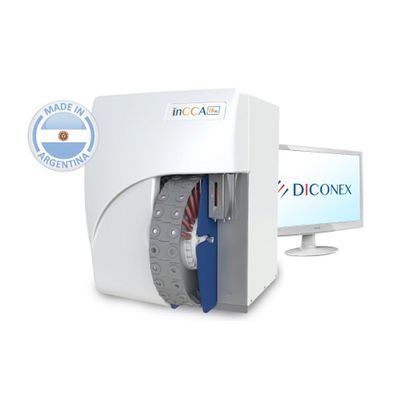

Diconex - Model InCCA Counter 18sc - Clinical Chemistry Autoanalyzer

PARAMETERS

• WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PCT, PDW
• LYM %, LYM #, MID %, MID #, GRAN % , GRAN #
• WBC, RBC, PLT histograms

SAMPLE VOLUME

• 25 µl

MEASUREMENT CHAMBERS

• 3 (RBC, PLT), (WBC) and Mix chamber

APERTURE DIAMETER

• 70 µm/ RBC-PLT and 100 µm/WBC

THROUGHPUT

• 50 Test/hour with Autosampler and 60 Test/hour in manual mode

ACCURACY

• WBC: 3%, RBC: 2%, HCT: 3%, MCV: 2%, PLT: 4%

VOLUME SENSORS TO:

• Reagents and waste

MULTILANGUAGE

• English, Spanish, Portuguese (others available)

CONTROL DATA MANAGEMENT

• Q.C. graphics: incl. mean, min/max range, SD and CV for all measured and calculated parameters, Levey-Jennings plot, separate QC database
• Capacity to store 150.000 samples with histograms

DIFFERENT SPECIES SUPPORTED

• Human
• Veterinarian (dog, cat, horse, up to 6)

PRINCIPLES

• Impedance method for WBC, RBC and PLT •Colorimetric method for hemoglobin test

SAMPLING METHODS

• Autosampler with Cap Piercer for 48 tubes
• Open or closed tube sample

MAINTENANCE PROGRAM

• Clog prevention: High-voltage pulses on both apertures (each analysis cycle)
• Chemical cleaning of both apertures (Cleaner reagent)
• Positive and negative solution pressure flush mode
• Internal and external washing probe system

INSTALATION

• Power requirements: 110 - 220 V/50 - 60 Hz. less than 50 VA

WEIGHT

• 20 kg

DIMENSIONS

• Width: 350mm; Height: 470mm; Deep: 380mm

PRINTERS

• Built in thermal printer

OPERATING ENVIRONMENT

• Temperature 15 ºC – 30 ºC.
