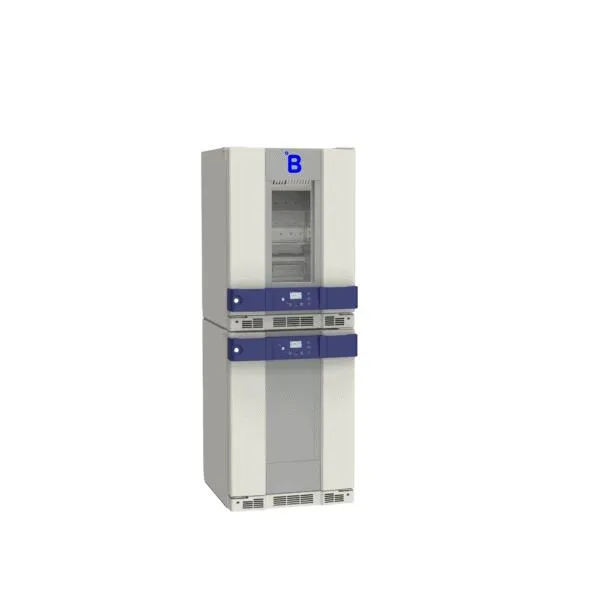

B Medical Systems -Model BF261 -Combined Blood Bank Refrigerator and Plasma Freezer
Combined Blood Bank Refrigerator and Plasma Freezer with 106 L x 2 | 3.74 cu ft x 2 storage capacity.
Most popular related searches
blood bank refrigeration
blood bank refrigerator
blood bank
blood bag
blood management refrigerator
blood management
blood plasma
blood bank management
blood typing
- Set Temperature: +4°C | -32°C
- Climate class (ambient temperature range): +10°C to +32°C
- Alarm limits: R: +2°C | +6°C | F: -37°C | -27°C
- External dimensions (HxWxD): 1650 x 595 x 695 mm | 64.96 x 23.43 x 27.36 in
- Refrigerant Type: Natural R290/R600a
- Uniform and stable temperature distribution
- Fast temperature recovery even in case of frequent door openings
- Safety thermostat preventing temperature below freezing in the refrigerator compartment
- Extended autonomy in case of power failure
- Audio-visual alarm system with remote transmission via SMS or email
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving in combination with a Data Communication Unit
- Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
- Polypropylene cabinets injected with polyurethane foam providing strong thermal insulation
- Sealed gaskets and 4-layer glass window (in the refrigerator compartment) minimizing cold air loss
- Interior automatic LED lighting for lower energy consumption
- One-piece cabinets manufactured with the unique technique of rotational moulding
- Smooth cleanable surfaces
- Low-noise appliance
- Low heat emission
- Organic glass window for better visibility of the refrigerated content

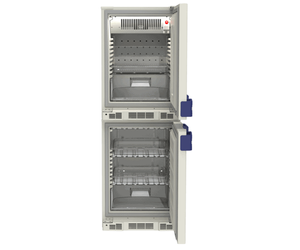

- Modular interior equipment
- Easy export of data on USB

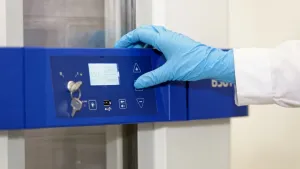

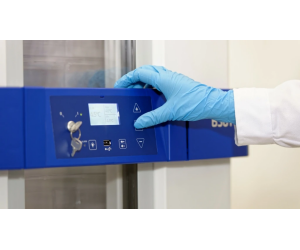

- Electronics with easily accessible temperature display
- Gasket heater minimizing condensation
- Lifetime warranty corrosion-free cabinet
- Gross volume: 121 L x 2 | 4.27 cu ft x 2
- Storage Capacity: 106 L x 2 | 3.74 cu ft x 2
- Blood bag capacity (450 ml): 51 (R) + 64 (F)
- Blood bag capacity (350 ml): 84 (R) + 84 (F)
- Set Temperature: +4°C | -32°C
- Alarm limits: R: +2°C | +6°C | F: -37°C | -27°C
- Climate class (ambient temperature range): +10°C to +32°C
- Certifications: cCSAus | EU MDR Class IIa | GMP B | ISO 6 | SCoPE | US FDA Class II
- Cooling technology: F: Static cooling | R: Forced air cooling system
- External dimensions (HxWxD): 1650 x 595 x 695 mm | 64.96 x 23.43 x 27.36 in
- Internal dimensions (HxWxD): 630 x 475 x 470 mm x 2 | 24.80 x 18.70 x 18.50 in x 2
- Net weight: 118 kg | 260.15 lb
- Frequency: 50-60 Hz
- Supply voltage: 220-240V
- Energy consumption: 2.9 kWh/24h (60 Hz) | F: 2.8 kWh/24h (50 Hz) | R: 1.1 kWh/24h
- Noise level: 36 dB (60 Hz) | 47 dB (60 Hz) | F: 45 dB (50 Hz) | R: 35 dB (50 Hz)
- Refrigerant Type: Natural R290/R600a
- Heat emission: F: 100 Kcal/h | R: 39 Kcal/h
- Materials: Polypropylene/aluminum

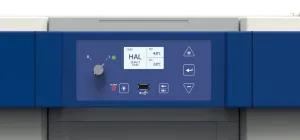

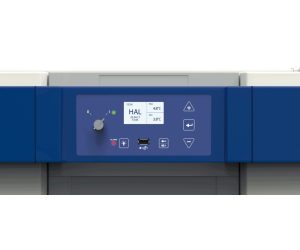

- Display: Digital display
- Remote monitoring: Optional °B Connected software via data communication unit
- Hold over time: F: 1.6 h (-32°C to -23°C) | R: 1.7 h (+4°C to +10°C)
- Defrosting technique: R: Natural; F: Manual
- Access control: Lock with 2 keys
- Data export: USB port
- Product Type: Combined Blood Bank Refrigerator and Plasma Freezer
