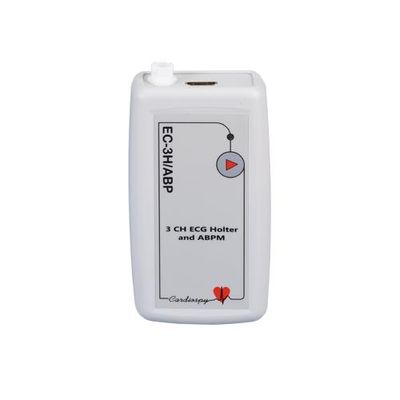

Labtech - Model EC-3H/ABP - Combined Three-Channel, Full Disclosure ECG Holter Recorder

Combined three-channel, full disclosure ECG Holter Recorder for an earlier purchased Holter ECG System. The EC-3H/ABP Combined Holter System combines a 3-channel ECG Holter and an ambulatory blood pressure monitor.

The Recorder set consists of: 1 pc EC-3H/ABP combined Recorder + analysis SW + accessories*.

*The manufacturer reserves the right to change the list of accessories at any time.

• Parameters: EC-3H/ABP
• Bipolar ECG Channels:    1, 2, 3
• Other ECG Channels:    +PM,, NEHB
• Respiration:    Yes
• Patient cables for recording:
• 1, 2, and 3 channels
• Number of snap type Leads:    3, 4, 5, 7
• Recording Period (hours): 8h – 336h
• The battery can be changed during recording: Yes
• Dynamic Bandwidth (min): ±20 mV
• DC Offset Range (min):    ±800 mV
• Frequency Response (max):
• 0.05 Hz … 150Hz
• Sampling Rate: 256 Hz … 2048 Hz
• Recording Rate:    128 Hz … 1024 Hz
• Common Mode Rejection Ratio (min): 120dB
• A/D Resolution: 16 bit
• Input impedance (min):    100 MΩ
• Battery Life (min): 24 hours
• Internal Voltage (max):    3.3 V
• Movement detection-3D: Yes
• Monitoring ECG: On PC via Bluetooth
• Reading Record: via USB cable
• International Protection Rating Against Water:    IPX0
• Size:    125 mm x 70 mm x 33 mm
• Weight: ~ 250 g (incl. Batteries)
• BP measurement method: Oscillometric with step deflation, Disatolic values correspond to Phase 5 Korotkoff Sounds
• BP measurement range:    20 – 260 mmHg (max inflate 300 mmHg)
• Pressure Transducer Accuracy: ± 3 mmHg
• Pulse Rate Range: 30 – 220 BPM (Beats Per Minute)
• Pulse Rate Accuracy: ± 2% or ±3 BPM, whichever is greater
• Calibration: The device should be verified on a yearly interval
• Safety Systems:    Max. inflation pressure is limited to 300 mmHg;
• Auto safety release valve for power failure.
• Maximum cuff inflation time is limited to 75 seconds.
• Duration of blood pressure reading is limited to 130 seconds.
• Min. Power supply:    2 x 1.2 V AA rechargeable batteries of minimum
• 2500 mAh capacity or 2 x 1.5V AA high quality
• alkaline batteries
• Patient button:    Yes
• Storage Card Capacity:    built-in 2GB (uSD)
• Blood pressure measurement interval settings: In intervals of 10 to 240 minutes (adjustable every minute)
