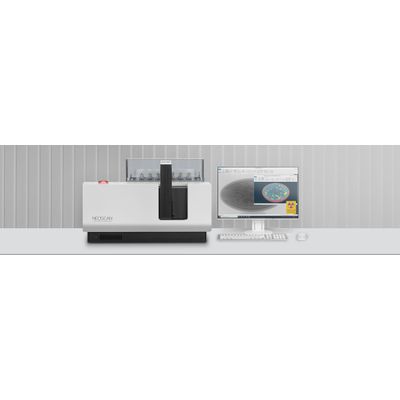

NeoScan -Model N60 -Compact, Accessible Micro-CT Scanner
X-ray source up to 65 kV: For use in polymer, geological, pharmaceutical, bone and dental applications, Spatial resolution of 8 um: Suitable for most day to day applications, Pixel size of 3.8 um in full field-of-view of camera: Large format camera without compromising resolution, Low weight and compact design: Fits your desk, Only requires USB3 connection: Works with most laptops, tablets.
GENERAL
Pixel size at maximum magnification: 3.8 um
True low-contrast 3D resolution: 8 um
Maximum scanning diameter: 19mm / 36 mm
Maximum scanning length: 60 mm
Maximum physical object length: 140 mm
Size: 800W x 310D x 375H mm
Weight: 45 kg
X-RAY SOURCE
Emitter: Reflective target
Maximum voltage: 65 kV
Maximum power: 50 W
Automatic filter changer, number of positions: 4
X-RAY CAMERA
Camera sensor: Cooled 15 Mp CMOS
Camera field of view: 22 x 13 mm
Camera pixel size: 4.25 um
Radiation protection: Yes
