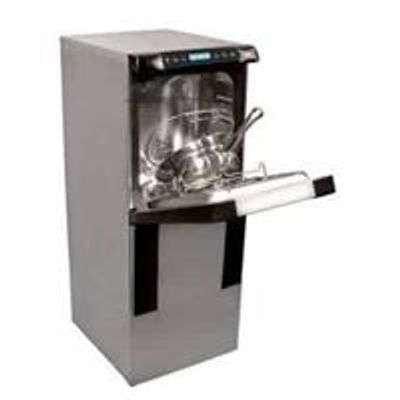

Ken -Model BWD 731 -Compact Bedpan Washers
Exceptional advantages for users and technicians. Printer, RFID recognition, and various racks can be offered to suit the customer’s needs.KEN BWD 731 is a compact bedpan washer with a modern Danish design. BWD 731 has specially been developed for hospitals, nursing homes, private clinics, etc. where there is a need for washing bedpans, urine bottles, etc. The machine is also suitable for isolation rooms where there is a need of washing and disinfection.
It has an elegant, functional appearance typical of Danish design, the focus being on quality, flexibility and user-friendly advantages. KEN BWD 731 can be hung on a wall, mounted on the floor on a base, or be supplied as an under-table model.
The wash chamber can take 1 bedpan or 2 urine bottles, for example. The computer-monitored wash process and the rotating wash heads ensure a high-quality and always uniform result.
- Simple front operation
- Easy-to-read display with program info
- 5 programs as standard. Option for individual modification
- Total disinfection of nozzles, wash heads, combi-tank, and pump after wash. Combats bacterial growth and maintains hygiene (patented)
- Automatic door operation. There is an option for remote-operated door closing (elbow-operation, foot-operation, etc.)
- Quick-start – automatic closing of the door and automatic program start
- The door as slop sink. The bedpan is emptied automatically, but only once the door is closed
- KEN NetCom – communication via a network with a central or decentral computer for documentation
- Chemical storage compartment for 5 l standard container.
- Easy to clean, smooth surfaces. Hygienic inner design
- Double independant drain control & temperature control
- Power connection (standard) 3×400 V, N, J, 50Hz
- Connected load/initial fuse 6kW/10A alternatively 9kW/16A
- Water connection Cold water: 1 pcs., ¾” RG, 5-30 gr.C, 0-3 gr.dH
- Water connection Hot soft water: 1 pcs., ¾” RG, 30-70 gr.C, 0-3 gr.dH
- Water pressure 200-800 kPa
- Outlet Ø 110 mm P/S, wall or floor (to be specified)
- Water consumption, Rinsing programme 1 wash phase, 7 l
- Water consumption, Urine bottle programme 2 wash phases, 14 l
- Water consumption, Bedpan programme medium 3 wash phases, 21 l
- Water consumption, Bedpan programme long 5 wash phases, 35 l
- Water consumption, Wash basin programme 3 wash phases, 21 l
- Soap pump Standard
- Built-in soap compartment room for 1 pcs. 5 l container
- Pump capacity 298 l/min.
- Measurements wash chamber h x w x d 460 x 380 x 280 mm
- Noise level 47.5 dBa (sound pressure)
- Sealing class Standard:IP 21 (not scavenging-proof). Extra: IP 44
