iLux RED -Compact Device for MultiMode HEL Lasertherapy
FromMecmedix

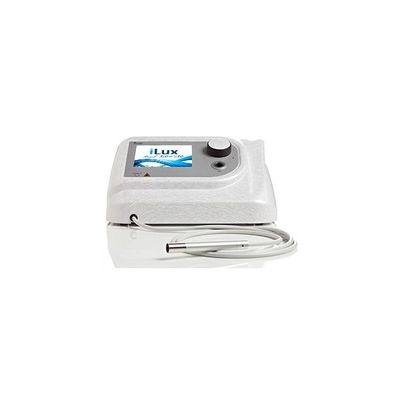

iLux is a lightweight, powerful and compact device for MultiMode HEL Lasertherapy. iLux is available in several versions to suit your needs. You can choose from multiple configurations with different power combinations (5W to 15W) and wavelengths: 810nm + 980nm, 1064nm, 810nm + 1064nm, 810nm + 980nm + 1064nm (Triax). iLux is flexible, functional and high-performance, and thanks to the many accessories it enables you to implement the therapy in a simple and effective way. Additionally, you can extend iLux functionality thanks to the ScanX module and combine all the advantages of manual and automatic therapy in a single device.
Most popular related searches
anti-inflammatory
laser therapy
inflammatory anti
inflammatory edema
operating light
therapy system
inflammatory analgesic
ILUX 810+1064
810+1064 nm
10 W - 15 W
ILUX RED
650 nm
500 mW - 2000 mW
- Technology: Mectronic’s own MecOS Real-Time Operating System
- Guide Light: 650 nm - 3mW
- Emission: Continuous (CW), Pulsed, Super-pulsed, and E²C (patented stochastic mode)
- Operation mode: Manual, Single Pulse, Burst and Custom mode
- Special modes: Joule mode, Timer mode, Trigger Point mode
- Effect Mode: 5 specific emission modes to maximise the 5 main effects of laser therapy: Bio-stimulant, Analgesic, Anti-inflammatory, Anti-edema, and Tension Relief
- Pathologies: Over 60 pathologies with interactive illustrations and protocols sub-divided by phase
- Calibration: Graphic and acoustic control system for the laser emission at handpiece based on normative CEI EN 60825-1
- Display: TFT 5,7” colour touch-screen
- Power Supply: 100 ÷ 240V 50 ÷ 60Hz
- Electrical Input: 160 VA
- Dimensions: 320 x 245 x 130 mm
- Weight: 3 kg
- Laser Class: IV
- Compliancy: IEC/EC 60601-1 60601-1-2
- Certification: CE0051
- Directive 93/42: llb Classification
