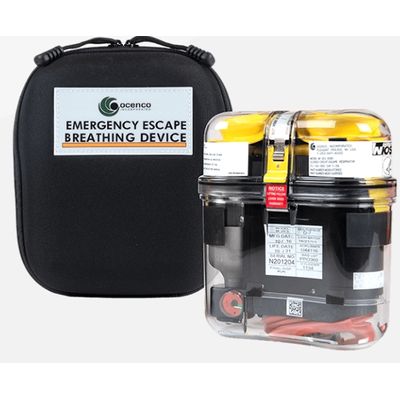

Ocenco -Model M-20.3 CCER MINING -Compressed Oxygen Delivery System
The M-20.3 meets the NIOSH 42 CFR part 84 subpart O requirements for closed circuit escape respirators. The compressed oxygen delivery system activates automatically when the device is removed from the clear case. The demand regulator allows the user to inhale immediately from the device when donned and provides up to 100 liters of oxygen flow during high work rates. The clear case allows the user to quickly visually assess the operational readiness of the device.
Oxygen Delivery: Automatic valve, constant flow / demand regulated
Available Oxygen: 24 liters
Donning Time: Less than 15 seconds
Service Life: 15 years with 5-year factory service intervals if belt-worn
Storage Temperature: 10º–140º F (-12º–60º C)
Inspection: Visual
Inspection Frequency: Every 90 days for stored units; daily for deployed units
Approvals: NIOSH/MSHA CAP 1-20L
Weight as Donned: 2.1 lbs. (1.0 kg)
Product Dimensions: 7.3" x 6.6" x 3" (18.5cm x 16.8cm x 7.6cm)
Approximate Case Dimensions: 8" x 7" x 4" (20.3cm x 17.8cm x 10.2cm)
