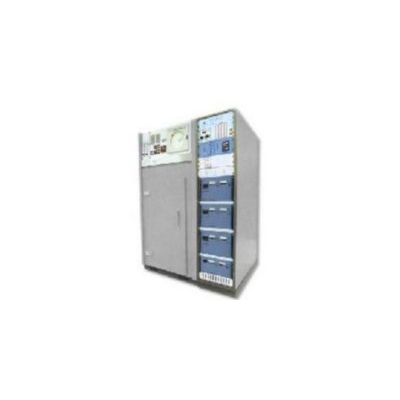

Cobis -Model II -Computer Operating Burn-In System
COBIS II bring you a step closer to an ideal burn-in system and is designed to meet MIL-specification. COBIS II is a 48 channels high speed dynamic burn-in system that is fully computer control and monitored. It is capable of performing burn-in for memory (SDRAM, DRAM, SRAM, EEPROM, EPROM, FLASH) and logic devices.
It allows burn-in process programs to be created off-line,before burn-in. Once downloaded to the system, the burn-in set-up and monitoring will be performed accordingly.
COBIS II computer performs supervisory task of system control, monitoring and data logging. It communicates with the burn-in system via RS485.
All controls and operations of the system are supported by a windows based user interface software. It is flexible and user friendly.
COBIS II Network is a networking software which has the capability of linking up to a maximum of 32 COBIS II Burn-in Systems. The central computer oversees and monitors the status and fault of each individual system on the network. Individual system can operate independently when central computer is offline.
