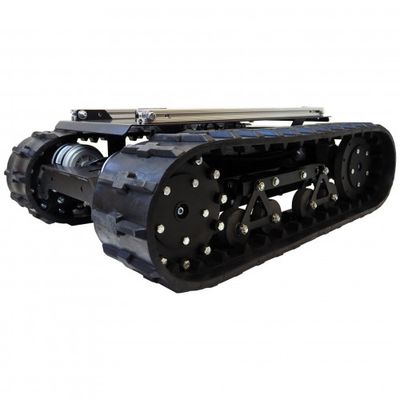

Model TP-250-001 -Configurable - GRT1000 Heavy-Duty Tracked ATR Robot
The GRT-1000 is our largest tracked platform. It is fast, responsive, and easy to control. It uses 6" wide tracks driven by four powerful wheelchair motors, making this robot capable of hauling heavy loads and navigating difficult terrain. The chassis is made from steel, welded together to make it extremely robust. The chassis is then painted to protect from corrosion. 1" aluminum extruded rails are included on top of the chassis to make payload attachments easy. See the videos tab to watch what this robot is capable of.
Most popular related searches
Specifications
- Dimensions (LxWxH): 35" x 24" x 12"
- Weight: 154 lbs
- Speed: ~2.25mph (~200 feet per minute)
- Axle Mount: Direct Mount (DM)
- Capacity: Approximately 200lbs
- No extra payload – running robot at ½ to ¾ speed for max efficiency (80 RPM)
-
- Drive straight – 8 amps
- Pivot Turn concrete - 15 amps
- Gradual Turn – 8 amps
- Uphill (loading dock ramp) - 12 amps
- 200 lb payload - running robot at ½ to ¾ speed for max efficiency
-
- Drive straight – 8-10 amps
- Pivot Turn concrete - 25-30 amps
- Gradual Turn – 18 amps
- Uphill (loading dock ramp) - 18 amps
Standard Configuration
- Chassis: Custom Tactical Black Chassis
- Motors: Four (4) 24VDC 75RPM Wheelchair Motors
- Battery: Two (2) 12V 35Ah SLA Battery
- Motor Controller: One (1) Sabertooth Dual 60A Motor Driver
- Control System: FLYSKY FS-i6x 2.4G 6Ch Transmitter & Receiver
