Vulkan -Model XBody -Conical Connection Implant

Optimal sealing and more bone tissue

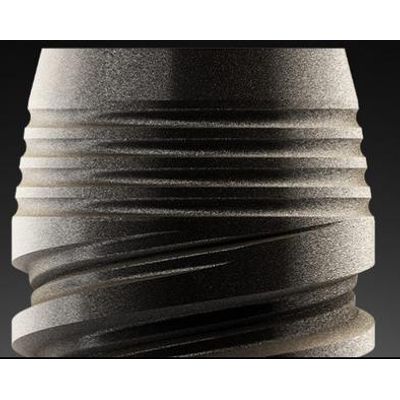

The 12° tapered profile at the connection ensures optimal sealing by minimizing microleakage. The X-Body macro design with inverted cone in the coronal area of the implant maximizes bone and soft tissue volume. X-Body macro design with inverted cone in the coronal area of the implant maximizes bone and soft tissue volume. Micro grooves in the coronal area of the implant provide increased primary stability. Microgrooves in the coronal zone provide increased primary stability.

More stability. Better fluid flow

The Xbody design is marked by the shape of an inverted cone in the coronal region of the implant along with the platform switching, maximizing the volume of bone and soft tissue and providing a natural-looking aesthetic for an optimal prosthetic result. and exert an anti-rosion function when osseointegrating.

More self-tapping turns

The Xbody morphological design of the implant features more pronounced threads with a trapezoidal thread profile at 45° which increases the contact surface with the bone. The set is combined with the conical core giving a greater sense of control in the insertion. and higher primary stability with less milling.

Balanced and without risk of injury

The 3 notches of the implant provide a perfect balance and center the implant with respect to the socket. Blunt end of apical area simulates natural root, improves maneuverability in insertion and reduces the risk of injury to anatomical structures.
