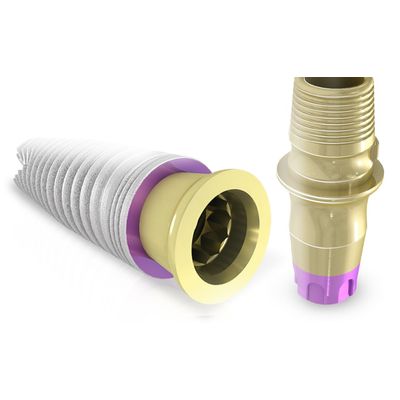

MIS -Model C1 XD -Conical Connection Implant

• Bone Preservation
• The C1 implant incorporates the platform-switching design concept. The 12-degree friction fit conical connection which ensures a secure seal and minimal micro-movements, micro-rings on the implant neck and a platform switched design, were engineered to provide a tight interface, improved BIC, and soft tissue preservation and growth. Crestal bone loss may be minimized by reducing mechanical trauma and stress in the cortical bone, and gaining soft tissue volume.
• Maximum Accuracy
• Each C1 implant is supplied with XD - single-use, sterile drills, designed for optimal implant-drill compatibility and high initial stability, while ensuring safe and simplified procedures.
• High Initial Stability
• The C1 dual thread design increases the BIC (Bone to Implant Contact) over the entire body of the implant and ensures a safe and controlled insertion rate. With its conical, root-shaped geometry, the C1 is engineered for high primary stability and offers the ultimate choice for a wide range of clinical cases and loading protocols.
• Esthetics
• C1 implant system includes a variety of concave emergence profile abutments. This abutment profile was designed to give more room for soft tissue ingrowth. The gold-shaded abutments minimize the reflection through the gingiva; it allows enhanced esthetic results in a thin gingival environment.
• Clinical Success
• The surface roughness and micro-morphology of MIS implants are a result of sandblasting and acid-etching. It has been documented to be highly osseo-conductive in type IV bone. The MIS surface technology has been acclaimed for its high cleanliness, making it one of the most outstanding surfaces on the market.

Features

Internal conical connection:
2.00mm depth; 12° cone.

Domed cutting apex:
Two cutting blades at the implant apex; Self-tapping.

Thread design:
Tapered interior body for horizontal bone condensing; Sharper threads at the apex; Dual thread design for increased BIC; Doubles implant insertion rate (1.50mm).

Micro-rings
for a significant increase in BIC.

Platform switching:
Keeps implant-abutment connection away from the bone; Allows more vital growth of the soft tissue.

Surface treatment:
Sand-blasting and acid etching; Creates both micro and nano-structures; Eliminates various surface contaminants.

XD drills:
Sterile, sharp, single-use drills are provided in every C1 Implant package.

Color coding:
Color-coding by platform; Easy identification during procedures.

Material
Raw Material:

Ti-6Al-4V ELI (Grade 23)

• Excellent fatigue strength
• Low elastic modulus

Package Contents

• Implant
• XD drills
• Cover screw
• Temporary PEEK cylinder
