- Esthetics:

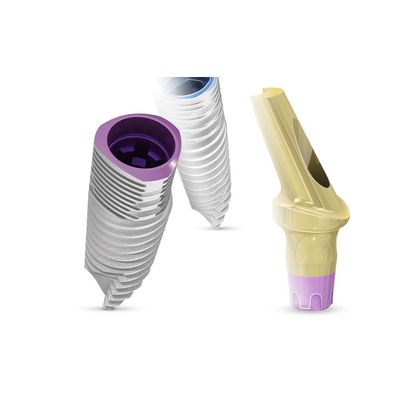

- V3 implant system includes a variety of concave emergence profile abutments. This abutment profile was designed to give more room for soft tissue ingrowth. The gold-shaded abutments minimize the reflection through the gingiva; it allows enhanced esthetic results in a thin gingival environment.
- Implant integration:
- The triangular-shaped neck of the of the V3 was engineered to provide a reservoir for blood pooling and the formation of blood clots. These conditions are required for both optimum implant integration and bone growth.
- Bone preservation:
- A 12-degree friction fit conical connection which ensures a secure seal and minimal micro-movements, along with the gaps formed around the sides of the implant neck and a platform switched design, were engineered to provide a tight interface, compression-free zone, and soft tissue preservation and growth. Crestal bone loss may be minimized by reducing mechanical trauma and stress in the cortical bone, and gaining soft tissue volume.
- Maximum accuracy:
- Each V3 implant is supplied with its own sterile, single-use final drill, which is suitable for all bone types, increasing the potential for a more precise-fit. V3 insertion tools are marked to help orient the implant during placement.
- Clinical success:
- The surface roughness and micro-morphology of MIS implants are a result of sandblasting and acid-etching. It has been documented to be highly osseo-conductive in type IV bone. The MIS surface technology has been acclaimed for its high cleanliness, making it one of the most outstanding surfaces on the market.
Features
Implant neck:
Triangular shape; Anchorage at three points.
Platform switching:
Keeps implant-abutment connection away from the bone; Allows more vital growth of the soft tissue.
Internal conical connection:
2.00mm depth; 12° cone.
Micro-rings:
A significant increase in BIC.
Flat apex:
Allows good grip into bone.
Surface treatment:
Sand-blasting and acid etching; Creates both micro and nano-structures; Eliminates various surface contaminants.
Final drill:
Sterile, single use, stainless-steel; Custom-made for the V3 implant.
Color coding:
Color-coding by platform; Easy identification during procedures.
Material
Raw Material:
Ti-6Al-4V ELI (Grade 23)
- Excellent fatigue strength
- Low elastic modulus
Package Contents
- Implant
- Final drill
- Cover screw
