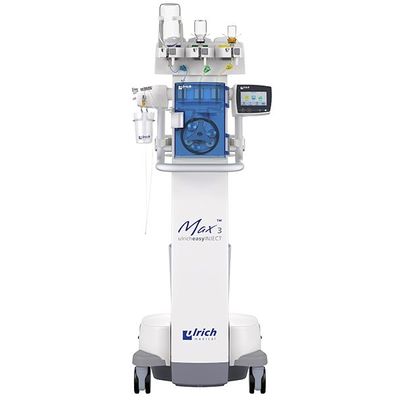

ulrich -Model Max 3 -Contrast Media Injector for MRI and Digital, Contrast-Enhanced Mammography
24 hours of use of the easy-click cassette; Set up only once per day; Intuitive operator control concept and wireless operation; CM-Select for selection of a second contrast medium in the case of two different contrast media; CM-Loop for alternating switching to full contrast media containers when two identical contrast media are used; Direct injection from all standard media containers; SafeConnect with contact protection; Unique patient-side air monitoring; Extended use: now also approved for contrast media application in mammography.
- Insert Easy-Click-Cassette
- Connect patient tubing
- Attach media container
- Done!
- Detach patient tubing
- Connect new patient tubing
- Done!
- Fast and easy to use
- Low overall operating costs
- High degree of flexibility through optimal contrast media management
- High degree of hygiene safety for patient and user
CM-Select
- Change of the CM with the same active ingredients at the push of a button
- No change of the 24h pump tube
- Automatic rinsing program
- Double CM supply due to automatic changeover with identical CM
- Low CM wastage rates
- Efficient due to high patient throughput and patient changeover within a short period of time
Extended CM-Selct
- Use of CM with different active ingredients
- Change of CM by using of special rinsing program
- No change of the 24h pump tube necessary
Software functions (standard)
- CM-Loop:
alternate switching in the case two identical contrast media - Remainder display:
CM and NaCl are displayed visually in mL on the injector and terminal - NaCl backup:
If there is an insufficient amount of CM, the amount of CM missing is automatically substituted during the injection with NaCl - Manual pause, time-controlled pause, timer
Software functions (optional)
- CM-Select:
Selection of a second contrast medium in the case of two different contrast media - Vein check:
Verification of proper cannula position in the patient - Same patient:
Multiple examinations without need to change patient tubing
The two-part tubing system for the new generation of ulrich medical® MRI contrast media injectors comprises:
- Easy-click cassette:
Can be used for up to 24 hours for as many injections as desired - Patient tubing with SafeConnect:
Use for as many injections per patient as desired; change and dispose of after each patient
Advantages
- Very fast and easy to use – easy-click cassette can be inserted with just two clicks
- Different holder sizes allow maximum flexibility when selecting contrast media
- Low costs for disposables
- SafeConnect with contact protection ensures maximum hygiene safety for user and patient
Tray
- Important implements are always within reach
- Conveniently holds contrast media bottles and other injection accessories (up to 1 kg capacity)
Waste bin
- Fast disposal of used tubing and other examination waste
- Practical and space-saving placement
Adapter ring
- Maximum flexibility when media containers of different sizes are used
- Enables loading of small media containers (up to 20 mL)
