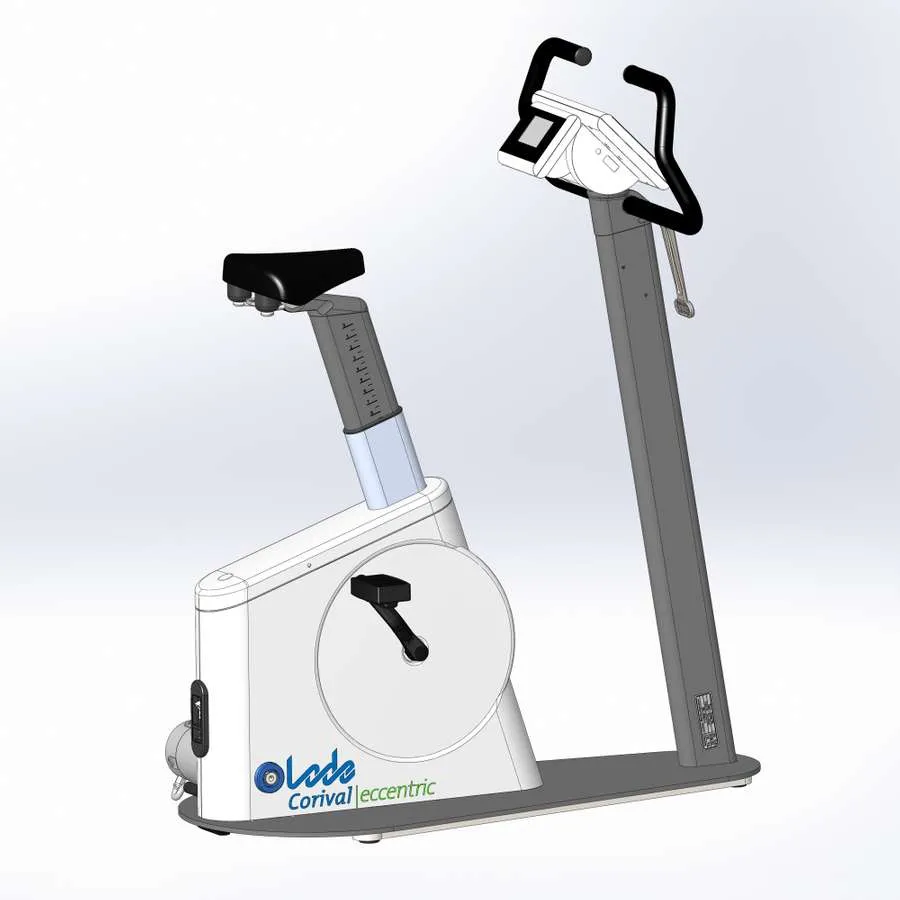

Lode -Model 960905 -Corival Eccentric Ergometry
Possibility to train severe cardiac and pulmonary patients with eccentric exercise. Eccentric ergometry or “negative ergometry” is used to train severe pulmonary and cardiac patients. The motor is pushing the crank axle of the ergometer in the opposite direction. The test subject has to resist this workload and keep the pedal frequency at a selected number to get the desired training effect.
Reliable and reproducible stress tests
The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.
High standards
Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, and ISO 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.
Various test modes
Besides the hyperbolic (rpm-independent) mode that is used most of the time, the standard control unit offers several other test modes, like the fixed torque mode and the linear mode.These modes can be used in both manual and terminal mode.
Q-factor equal to road-bike
The Q-factor of the ergometer is equal to the Q-factor of road bikes, creating perfect training circumstances.
Training severe cardiac and pulmonary patients
Possibility to train severe cardiac and pulmonary patients with eccentric exercise
The Eccentric Corival is an ergometer with a design like the Corival with a motor next to the usual electromagnetical braking principle. The maximal eccentric workload is 250 watt. The range of target rpm (30-100 rpm) can be customized and adjusted during the training. The eccentric ergometer has safety protections but may not be used without supervision. Besides this eccentric ergometry, this ergometer can be used for normal ergometry as well.
The ergometer is standard equipped with both a 7" programmable control unit and a 3,5" display.
Compatible with ECG and pulmonary devices
The Lode ergometers have digital interfaces and can be controlled easily by all known stress ECG and pulmonary devices available in the world. This is one of the reasons why the Lode ergometers are very popular worldwide.
Extreme low start up load
The extreme low start-up load of 7 watts and the adjustability in small steps of 1 watt make this ergometer perfectly suitable for many different applications. The standard control unit shows multiple ergometry parameters and you can determine your specific default setting and start-up menu.
Low noise
Due to accurate manufacturing and the careful choice of materials the product has an extremely low noise level.
Accurate over a long period of time
The Lode ergometers are supplied with an electro-magnetic braking mechanism of Lanooy (eddy current). The biggest advantage of this braking system compared to a friction braking system is the absolute accuracy and the accuracy over time. Moreover, friction braking systems have more wearing parts.
RS232 connectivity
RS232 ports enable connectivity to most ECG and ergospirometry devices as well as PC`s.
Readout of saddle height
The height of the saddle is stepless adjustable and can be read-out on the saddle shaft
Perfect ergonomic position
Improved ergonomic position according to the latest requirements.
Ultra-low step-through
The lowest possible step-through guarantees easy access to the ergometer for all test subjects: a must for people who are not so mobile!
USB connectivity
USB to connect to PC or ECG or ergospirometry products facilitates easy connectivity.
Small adjustment steps
The workload of the Lode ergometers is adjustable in steps of only 1 watt. Depending on your wishes, the test operator or the test subject can adjust the workload. The steps of 1 watt are possible in the manual mode as well as within protocols.
