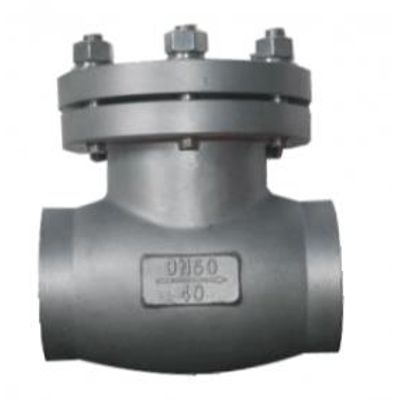

Speciality -Cryogenic Check Valve
FromSpeciality Valve
Body: CF8, CF8M, SS304, SS316, F304, F316. Bonnet: Stainless Steel. Disc: Stainless Steel. Stuffing: PTFE. Disc Seal ring: PTFE. Nominal Diameter: DN10 to DN80. Nominal Pressure: PN40MPa. Suitable Media: LO2,LN2,LAr,LNG,LCO2,etc. Suitable Temperature: -80? to +80?. Connection Type: Buttweld, Socketweld, Flanged.
Most popular related searches
- Body Material: CF8
- Class: PN40
- Connection Type: Buttweld, Flanged, Socket weld
- Size: 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3/4", 3/8"
- These valves are manufactured to withstand and operate effectively in extremely cold temperatures.
- They are built with tight seals to minimize the risk of leaks, which is important when handling cryogenic fluids.
- Crafted from materials selected for their low-temperature resistance.
- Engineered for an extended service life, ensuring durability and reliability in challenging environments.
- They often include safety features such as pressure relief valves to prevent overpressure incidents, which can be especially dangerous in cryogenic systems.
- They provide precise control over the flow of cryogenic fluids
- They come in a wide range of applications
- Aerospace
- Energy (LNG Storage and Transportation)
- Petrochemical
- Steel Production Industry
- Electronics Industry
- Energy Plants
- Industrial Gases Plants
- LNG (Liquefied Natural Gas) Industry
- Marine Industry
- Mining Industry
- Chemical
- Oil and Gas
- Cryogenic Gas Production
- Semiconductor Manufacturing
